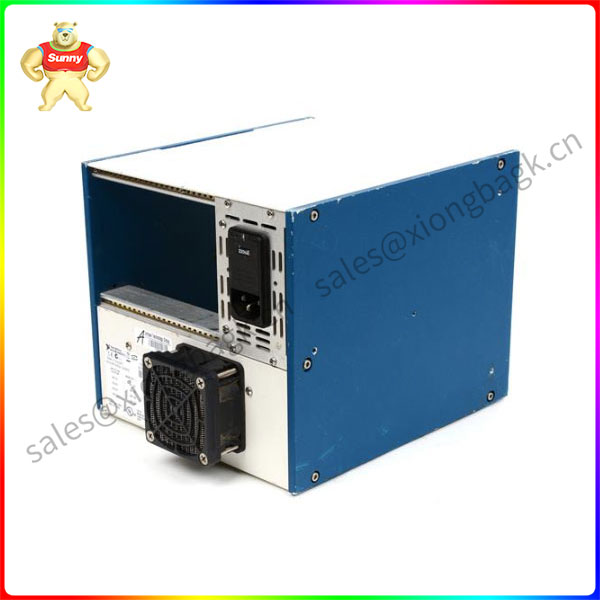

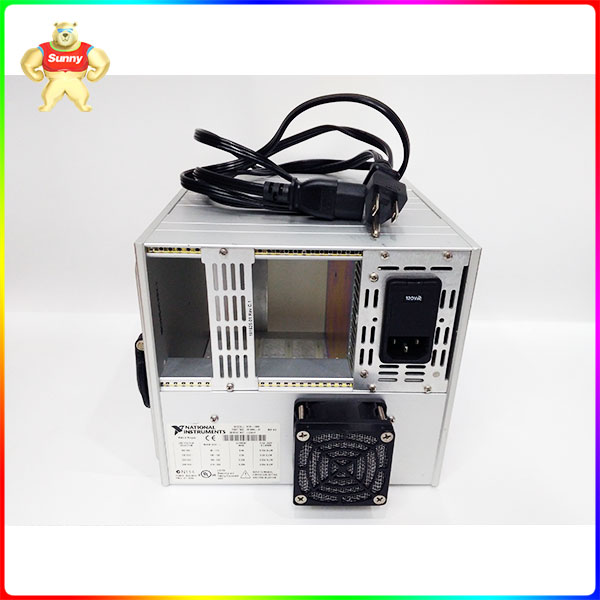

SCXI-1000 AC chassis is a durable, low-noise chassis for the SCXI module

Product details:

This NI SCXI 1000(Part number :776570-01,776570-02,776570-03,776570-04,776570-05,776570-06,776570-07, 778570-01, 778570-04, 776570-09, 776570-10) is a durable, low noise case for SCXI modules that handles all planning, starting, and routing of signals between different modules and SCXI modules. For larger frames or future development, users can connect up to eight SCXI 1000 cases with a single gadget or multi-function I/O module for multi-channel applications. The SCXI 1000 offers seven different power options that can be adjusted to the power needs of each country and reconfigured to suit the needs of different countries. This SCXI 1000 national instrument can operate at 100, 120, 220 and 240 volts AC. The voltage converter in the power channel module determines the voltage set by the chassis.

In multiplexing mode, analog input (AI) channels are multiplexed into a module output, so wired E/M series DAQ gadgets are close to the module’s multiplexed output and the output of all other multiplexed modules in the case. In parallel mode, the user needs to equip each module with a different E/M series DAQ gadget to send each of its output channels specifically to a different AI channel of the E/M series DAQ gadget associated with that module.

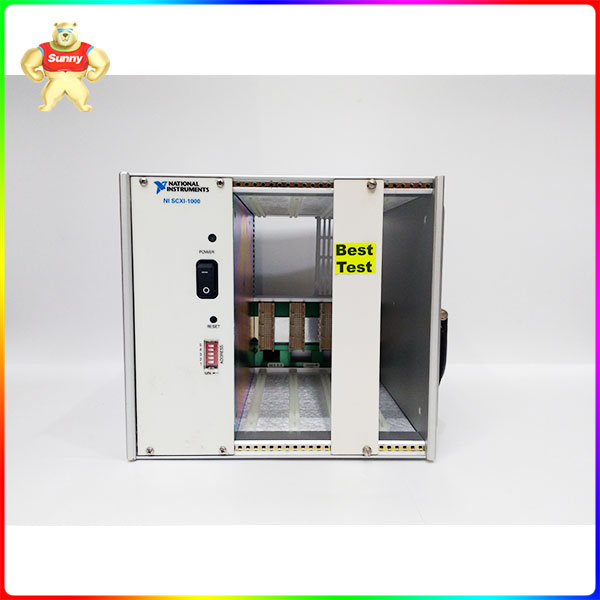

The user can arrange one of SCXI 100032 different addresses. Thus, several Ni SCXI 1000 can be associated with the same control source (the five switches on the front panel of slot 0 determine the frame address). When switches 1 through 5 are set in the ON position, they represent the values 1, 2, 4, 8, and 16. When it is set to the off position, their respect value is zero. The chassis address is all of a switch. The NI device weighs 10 ounces and measures 9.8 x 7.7 x 7.0 inches. In the physical dimension. The power consumption of each slot is 7 W. The recommended operating temperature range is 0 to 50°C, and the recommended storage temperature range is -20 to 70°C.
