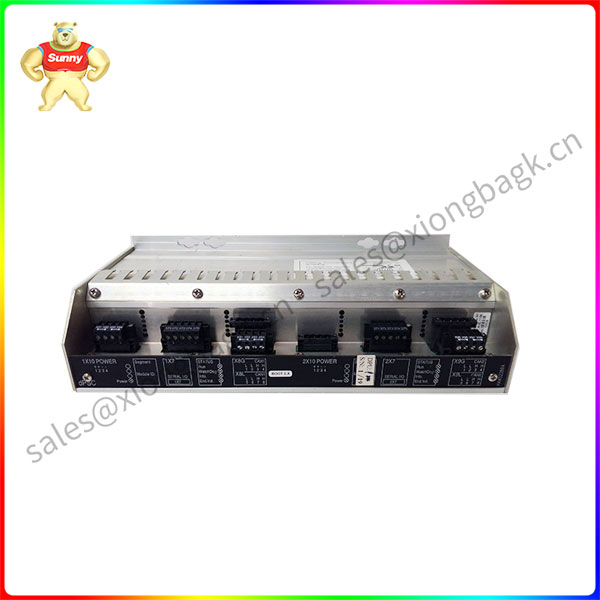

KONGSBERG AUE-1108 controller

Controller AUE-110 is a combination of logic controller and microprogram controller, both of which have advantages and disadvantages. Combinatorial logic controller is cumbersome in design and complex in structure. Once the design is complete, it cannot be modified or expanded, but it is fast. AUE-110 controller is convenient in design, simple in structure, easy to modify or expand, modify the function of a machine instruction, only need to reprogram the corresponding microprogram; To add a machine instruction, just add a microprogram to the control memory, but it does so by executing a microprogram. The specific comparison is as follows: combinational logic controller, also known as hardwired controller, is composed of logic circuit, completely rely on hardware to achieve the function of instructions

KONGSBERG AUE-1108 controller is composed of sequential circuit, instruction decoding circuit and combinational logic circuit. Through the instruction decoder to determine the current execution of the instruction, combined with the timing circuit generated by the beat, together as the input result of the combinative logic circuit output corresponding control signals. The KONGSBERG AUE-1108 controller is a complex combination of logic gates and triggers. It is fast and therefore widely used in computer structures such as RISC.
