Description
Product details:

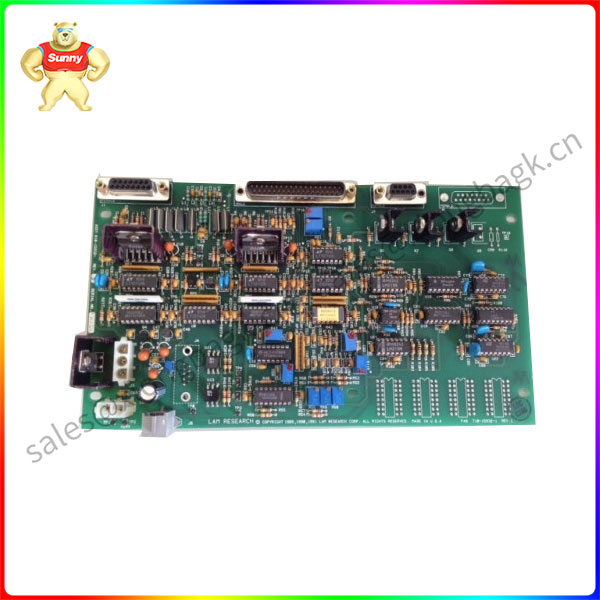

LAM Research 810-15932-1 Low Frequency PCB
Key words: 810-15932-1
Net weight (Kg) : 2.058Kg
Condition: 100% original
Warranty: 1 year
Packaging: 100% original
Delivery time: TNT, DHL, FEDEX, EMS, UPS
Time of payment: Telegraphic transfer
Delivery time: 3-5 days
LAM Research 810-15932-1 Low Frequency PCB. According to the functional unit of the circuit, the layout of all components of the circuit should comply with the following principles:
(1) Arrange the position of each functional circuit unit according to the flow of the circuit, so that the layout is convenient for signal flow, and make the signal as consistent as possible.
② The core components of each functional circuit as the center, around it to carry out the layout. Components should be evenly, neatly and compactly enfolded on the PCB to minimize and shorten the leads and connections between components.
③ The circuit working at high frequency should consider the distribution parameters between the components. General circuits should be arranged as parallel as possible. In this way, not only beautiful, but also easy to assemble welding, easy to mass production.
(4) Components located at the edge of the circuit board are generally not less than 2 mm away from the edge of the circuit board. The best shape for a circuit board is a rectangle. The length to width ratio is 3:2 or 4:3. ✖ circuit board face size greater than 200 mm, 150 mm, the circuit board by mechanical strength should be considered.
LAM Research 810-15932-1 Low Frequency PCB.① The wires used in the input and output terminals should be avoided as far as possible. It is better to add ground wire to avoid feedback coupling.
② The minimum width of the printed board wire is mainly determined by the adhesion strength between the wire and the insulating substrate and the current value flowing through them.
When the thickness of copper foil is 0.05mm and the width is 1-15 mm, the temperature will not be higher than 3℃ through the current of 2 A, so the wire width of 1.5 mm can meet the requirements. For integrated circuits, especially digital circuits, usually choose 0.02 ~ 0.3mm wire width. Of course, whenever you can, use wide wires, especially power cables and ground cables.
The minimum distance between wires is mainly determined by the insulation resistance and breakdown voltage between wires in the worst case. For integrated circuits, especially digital circuits, as long as the process allows, the spacing can be as small as 5 ~ 8 um.
Recommended model:
LAM 026182 | 810-069751-114 |
LAM 600604 | 810-800081-022 |
LAM 810-800081-005 | 810-072907-005 |
LAM 716-082039-003 | 810-234640-312 |
LAM 210024 | 810-001489-016 |
LAM 3604300 | 810-801237-021 |
LAM 13-8000-008 | 810-046015-010 |
LAM 601368 | 810-068158-015 |
LAM 13-8892-008 | 810-225420-002 |
LAM 600223 | 810-225420-002 |
