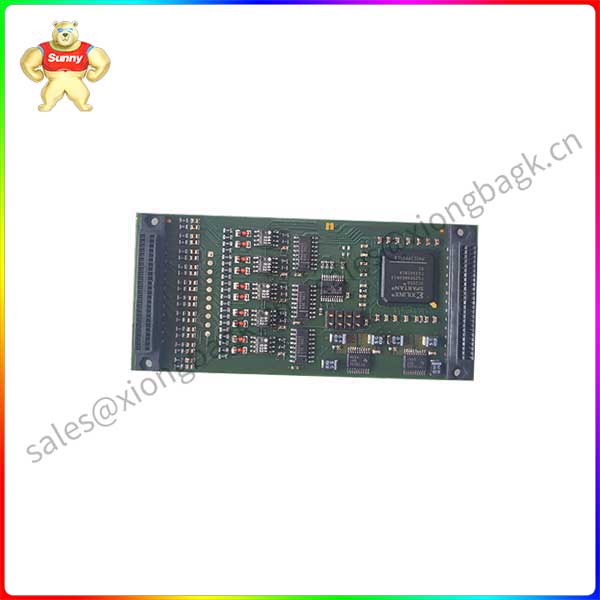

TIP114-10R IndustryPack compatible module

TIP114-10R is a IndustryPack® compatible module manufactured by TEWS Technologies GmbH and designed for motion control applications. The module provides 10 separate SSI (Synchronous Serial Interface) interfaces for connecting absolute encoders for precise position feedback.

Product characteristics
Isolation protection: The EIA-422 encoder inputs are electrically isolated by high-speed optocouplers, enhancing system safety and reliability.
Flexible configuration: SSI clock rates and data bit lengths are programmable to suit different application requirements.

Add to quote
Category:

Description

TIP114-10R IndustryPack compatible module

Product Description

TIP114-10R is a IndustryPack® compatible module manufactured by TEWS Technologies GmbH and designed for motion control applications. The module provides 10 separate SSI (Synchronous Serial Interface) interfaces for connecting absolute encoders for precise position feedback.

Product characteristics
Isolation protection: The EIA-422 encoder inputs are electrically isolated by high-speed optocouplers, enhancing system safety and reliability.
Flexible configuration: SSI clock rates and data bit lengths are programmable to suit different application requirements.
Driver support: Multiple operating systems are supported, including Linux, LynxOS, Integrity, QNX, VxWorks, and Windows.

TIP114-10R

Product parameter

Interface type: SSI (Synchronous Serial interface)
Number of channels: 10 independent channels
Clock rate: Programmable from 1µs to 15µs
Data bits: Programmable from 1 to 32 bits
Signal level: RS422
Data input: electrical isolation via high-speed optocouplers
Encoding mode: Supports binary or gray code encoding, with no parity check and even or odd check
Operating temperature range: -40°C to +85°C
Storage temperature range: -45°C to +125°C
MTBF (Mean time to Failure) : 444,000 hours
Humidity: 5% to 95% non-condensing
Weight: 25g
Power requirements: Typical value +5V DC, no load 50mA

Application field

Product characteristics
Isolation protection: The EIA-422 encoder inputs are electrically isolated by high-speed optocouplers, enhancing system safety and reliability.
Flexible configuration: SSI clock rates and data bit lengths are programmable to suit different application requirements.
Driver support: Multiple operating systems are supported, including Linux, LynxOS, Integrity, QNX, VxWorks, and Windows.
Application field
TIP114-10R is widely used in industrial automation and motion control fields that require accurate position feedback, such as robotics, CNC machine tools, precision measurement equipment, etc.
