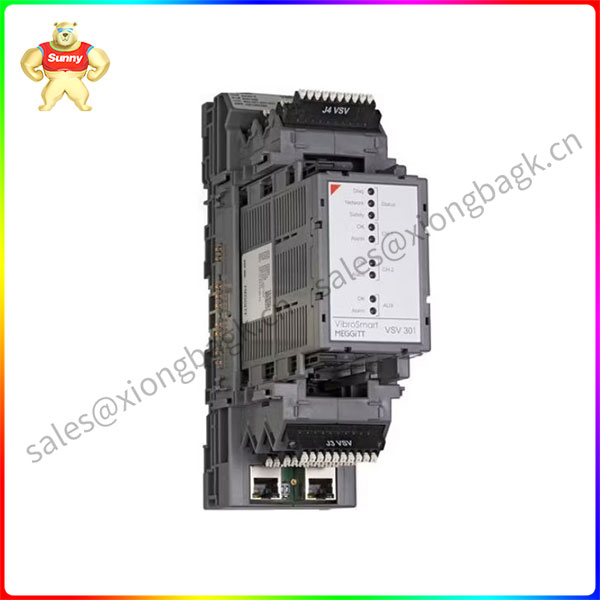

VibroSmart® VSV301 monitor module

Product details：

Origin: Switzerland

Key words:VSV301

Net weight (Kg) : 1.221Kg

Condition: 100% original

Warranty: 1 year

Packaging: 100% original

Delivery time: TNT, DHL, FEDEX, EMS, UPS

Time of payment: Telegraphic transfer

Delivery time: 3-5 days

The VibroSmart® VSV301 monitoring module has two separate dynamic vibration channels and an auxiliary channel that can be configured as a tachometer or DC input channel. The processing module is capable of vibration monitoring independently or can be integrated with other VibroSmart modules to create a more comprehensive measurement module.

The VSV301 module performs data acquisition and all signal processing (filtering, analog-to-digital conversion, time and frequency domain processing, and resamping) to generate the processed output and extracted data for physical output and data rendering in VibroSight Vision, as well as VibroSight range. This includes band extraction, advanced FFT analysis, trend and limit checking (alarms and sensors are normal), and acceleration/deceleration acquisition.

Note: The VSV301 monitor module matches or is better than the VSV300 monitor module in specifications and performance. It is a substitute for the same appearance, assembly and function. VSV301 also uses the same VSB300 terminal block, and you can easily replace VSV300 with VSV301.

Features of VSV301
2 dynamic channels and 1 auxiliary channel (tachometer or DC input)
Each module processes up to 20 outputs (for 2 dynamic channels, 1 auxiliary channel, and 1 biaxial correlation channel)
Highly configurable modules support synchronous data acquisition across all channels, asynchronous/synchronous sampling based on processing
24-bit data acquisition, high signal-to-noise ratio data processing, high-resolution FFT up to 1600 lines per 100 milliseconds
The highly integrated module (with VSB300 terminal block) includes sensor power, buffer output, DC output, relay, and Ethernet communication interface
