Product details：

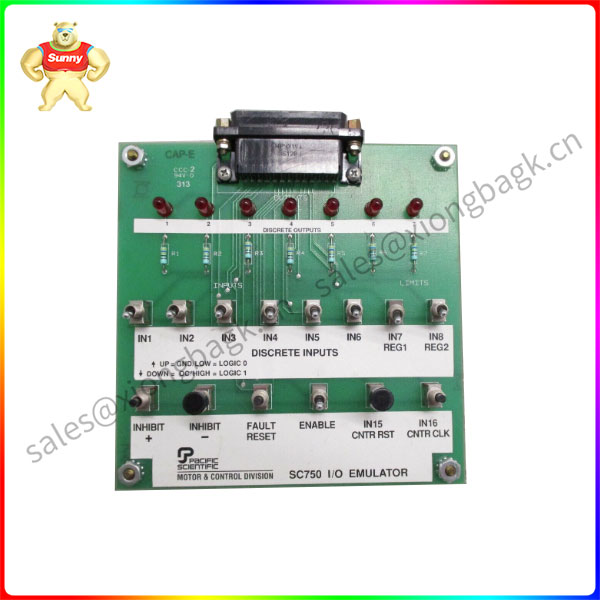

The Pacific Scientific 105-524002-01 is part of the 105 Motion Control Board series. This part is the SC750 I/O emulator board.

105-095001-01 is a motion control card manufactured by Pacific Scientific. One of the 105 series motion control cards. The card is very easy to use and is an extremely low budget solution for single and multi-axis motion control applications. The 105 motion control card series can support up to 4 motion control axes, 4 optical encoder inputs, 8 TTL/CMOS compatible outputs, optional analog inputs, and 8 TTL/CMOS compatible inputs. There are different ways to control modules.

One of these ways is through external control means. Here, an external host (PLC, microcontroller, or PC) sends commands to the controller using the RS-232 serial port. The entered commands are processed and executed by the controller, which responds with the correct message. Another method of controlling the module is through the control panel. The included easy-to-use control panel software enables users to quickly set up the module. The mechanism can be moved into variable positions via the trackball/joystick or by pressing the corresponding button on the control panel.
