Description
Product Overview

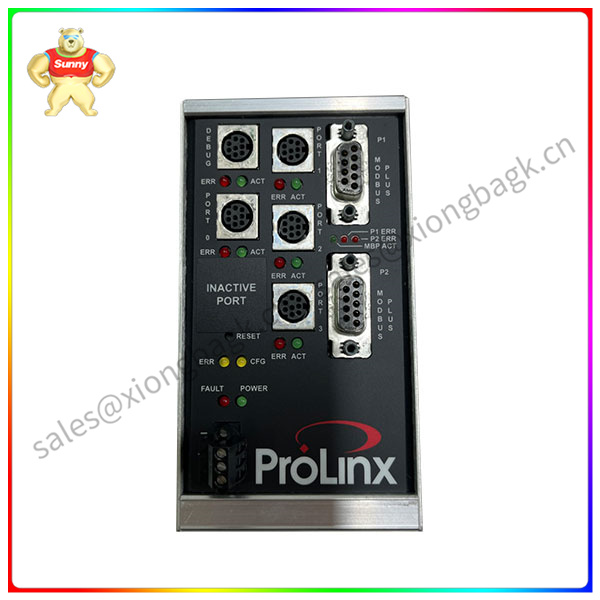

The ProSoft 5302-MBP-MCM4 is a rugged, high-performance Modbus Master communication module designed to enable seamless integration of PLC systems with Modbus RTU/ASCII networks. Part of ProSoft Technology’s industrial automation portfolio, this module allows controllers like Allen-Bradley CompactLogix to communicate with multiple Modbus slave devices, such as sensors, drives, and meters. The ProSoft 5302-MBP-MCM4 features four isolated RS-485 ports, supporting simultaneous multi-drop communication for scalable industrial networks. With its DIN-rail mounting and robust design, it operates reliably in harsh environments, including manufacturing plants, water treatment facilities, and energy distribution systems.
Certified for industrial standards, the ProSoft 5302-MBP-MCM4 simplifies legacy system modernization by bridging PLCs with Modbus-enabled devices. Its embedded diagnostics and configurable baud rates (up to 115.2 kbps) ensure stable data exchange, while dual 24V DC power inputs provide redundancy for mission-critical applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ProSoft 5302-MBP-MCM4 |
| Manufacturer | ProSoft Technology |
| Product Type | Modbus Master Communication Module |
| Protocol Support | Modbus RTU/ASCII (Master) |
| Ports | 4x Isolated RS-485 |
| Baud Rate | 300–115,200 bps (configurable) |
| Power Supply | 24V DC ±10% (dual redundant inputs) |
| Isolation | 1500V AC port-to-port and port-to-logic |
| Operating Temperature | -40°C to +70°C |
| Certifications | CE, UL, RoHS, ATEX Zone 2 (optional) |
| Communication Distance | Up to 1200 meters (with repeaters) |
| Dimensions | 135 mm x 120 mm x 50 mm |
| Weight | 0.6 kg |
5302-MBP-MCM4MB+
Key Functional Features
The ProSoft 5302-MBP-MCM4 streamlines industrial communication with:
- Multi-Drop Capability: Simultaneously manages up to 247 Modbus slave devices across four independent RS-485 networks.
- Diagnostic Tools: LED indicators for port status, power, and activity simplify troubleshooting.
- Redundant Power Inputs: Ensures continuous operation during power supply failures.
- Flexible Configuration: Intuitive ProSoft Configuration Studio software for mapping PLC registers to Modbus addresses.
- Noise Immunity: Optically isolated ports mitigate electrical noise in high-interference environments.
Application Scenarios
The ProSoft 5302-MBP-MCM4 is essential in industries requiring robust protocol integration:
- Manufacturing: Connects PLCs to legacy Modbus devices on assembly lines.
- Water/Wastewater: Interfaces with flow meters and pumps in treatment plants.
- Oil & Gas: Integrates SCADA systems with remote RTUs and instrumentation.
- Energy Management: Monitors HVAC and lighting controls via Modbus networks.
- Mining: Links PLCs to conveyor belt sensors and motor drives.
Related Products
- ProSoft 5302-MBP-SCM: Modbus Slave module for PLCs acting as slaves.
- ProSoft MVI56E-MCM: Modbus Master module for ControlLogix platforms.
- ProSoft PLX31-EIP-MBTCP: Ethernet/IP to Modbus TCP gateway.
- ProSoft IVC-10DIN: DIN-rail enclosure for modular installations.
- ProSoft CFG-PS-MCM: Configuration cable for module setup.
Product Assurance
ProSoft Technology guarantees the ProSoft 5302-MBP-MCM4 with a 5-year warranty, backed by ISO 9001-certified manufacturing. Each module undergoes rigorous testing, including EMC compliance (IEC 61000-6-2) and thermal cycling. Global customers receive 24/7 technical support via ProSoft’s Technical Assistance Center, with firmware updates and configuration assistance. Compliance with NEMA TS2 and IEC 61131-2 ensures suitability for industrial automation environments.
