Description
Product details:

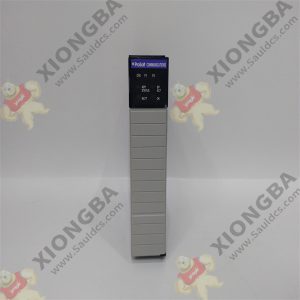

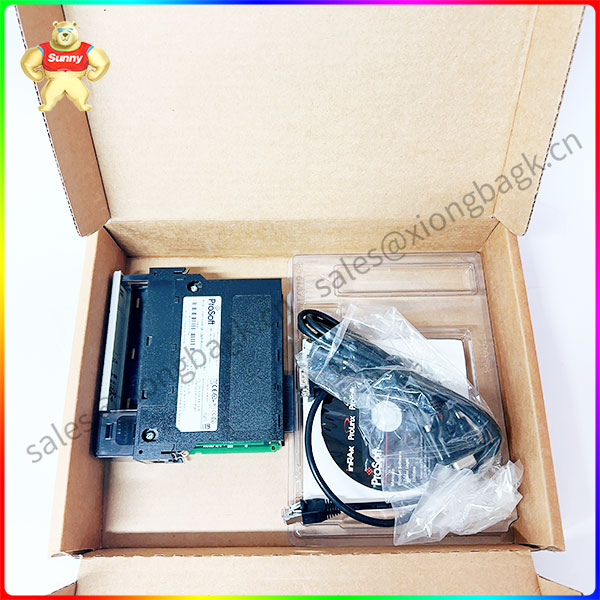

The MV156-PDPS Slave Station Communication Network Interface module is an Inrax-manufactured interface device developed to allow ControlLogix-enabled processors to interface with the PROFIBUS DP master device. The MV156-PDPS is supported by the PROFIBUS VO slave station implementation and can greatly improve the speed and quality of data transfer between connected ControlLogix processors and modules. MV156-PDPS has user-configurable data mapping features. The MV156-PDPS interface module is easy to use due to the DP operation port. For easier PC interface, the MV156-PDPS has a Configuration/debugging serial port that allows a variety of things such as status checking, monitoring, configuration as well as troubleshooting. A serial cable for this purpose is supplied with the module when shipped.
The rated DC voltage range of MV156-PDPS is 5 to 24 volts. The MV156-PDPS has a current rating range of 3 to 800ma and a communication rating range of 110 to 115200 baud. The MV156-PDPS is required to operate at a temperature of 32 to 140 degrees Fahrenheit. The pre-configured drive Settings for MV156-PDPS can be downloaded from the PC and installed onto the module. PROFIBUS DP Slave I/O limit is 200 characters without image and 122 characters with image. Input and output data blocks can be monitored separately and mapped onto the module’s data storage for maximum flexibility and efficiency. For data transfer between modules and processors, MV156-PDPS uses ladder logic. The device has local and remote rack options and a configurable I/O backplane.
