Description
Product details:

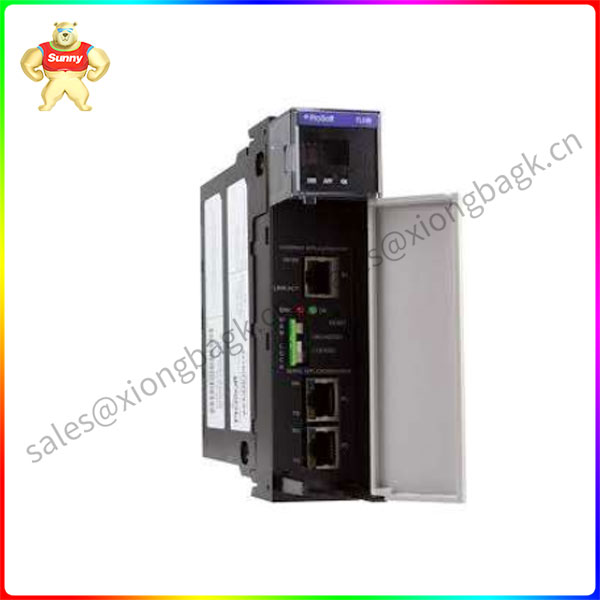

MVI56E-AFC Enhanced Liquid and Gas Flow Computer for ControlLogix®
ProSoft Technology’s MVI56E-AFC in-chassis flow computer solution allows you to combine the power and scalability of a ControlLogix® automation system with features typically found only in stand-alone flow computers or dedicated measurement RTUs. This gives you the industry standard calculations, documentation and reporting you need for custody transfer and allocation-based measurement capabilities for oil and gas operations.By combining automation and measurement functions into one solution, this helps reduce overall support and integration costs for oil and gas applications, while also lowering your overall capital expenditure. This simplified solution allows you to optimize resources.Plus, because our flow computers reside within the ControlLogix system, you can take advantage of Rockwell Automation’s distributed I/O capabilities, a wide range of communication protocols, and ProSoft’s radios to dramatically reduce wiring for transmitters and I/O devices.
Features and advantages of MVI56E-AFC
Meter runs: The module can calculate up to 16 meter runs simultaneously, with a maximum of 16 streams in a single meter run (up to 64 streams per module shared among all 16 meter runs). This flexibility provides a cost-effective, highly scalable solution for all your measurement applications.Modbus Capabilities: Remote configuration and diagnostics via Ethernet (Modbus TCP/IP) or serial (Modbus) interface. Flexible serial port configurations allow for two Modbus slave ports or one Modbus slave port and one Modbus master port. All data, including configuration, calculation results and history archives, are available from the serial port using a Modbus TCP/IP server or Modbus.
Customized Modbus data mapping: Remapping to virtual slaves enables data centralization and reduces bandwidth load on the communication system.
Auditability: Our configuration software provides the ability to download and view archives and events. Audit scans capture process inputs and calculation results as “snapshots”, allowing calculation verification. The event log records important events and alerts. Hourly and daily archives are configurable histories of user-selected data. Data can be viewed online, printed, or saved as .txt or .csv files. Archived data can be exported to Flow-Cal .cfx format. Meter calibrations and verifications are stored on the module.
Meter Verification: Allows meter verification with 3 configurable verifier types.
Security: Password protection schemes are available to control user access and log instrument calibration and verification activities. A built-in web server allows local/remote configuration, monitoring and wireless network diagnostics.
Recommended model:
MVI56-HART PROSOFT PLC
MVI56-MNETR PROSOFT MODULE
MVI56-MNETC PLC
MVI56-ADMNET PROSOFT
MVI69-PDPMV1 PLC product
MVI69-GSC PLC
MVI69-DFCM PROSOFT DCS
MVI69-AFC PLC
MVI69-HART PLC Industrial
MVI69-MNETC PROSOFT
MVI69-MNET PROSOFT PLC
