Description
Product details:
Part number: P0922YU

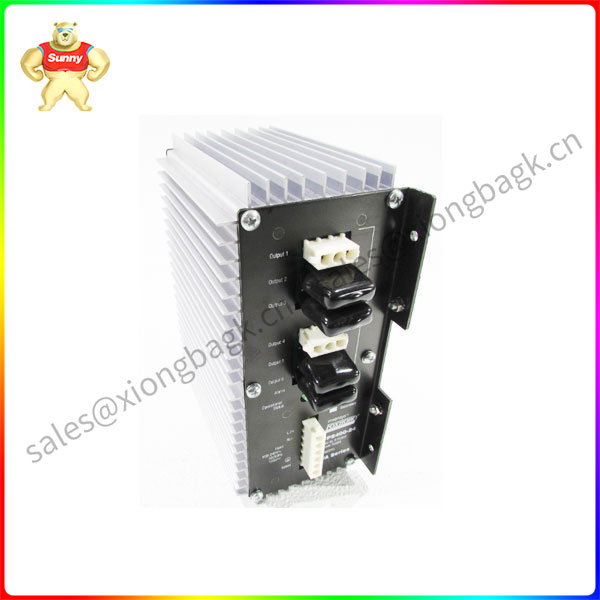

Description: I/A Series Power Supply
Brand: Foxboro
Input Voltage Range : 85 to 265 V ac or 108 to 145 V dc, 125 V dc nominal
Input Frequency Range: 47 to 63 Hz
Input Current : 5.6 A at 85 V ac input (RMS maximum), 2.5 A at 230 V ac input (RMS maximum)
Output Voltage : 24.0 V dc, ±0.2 V dc nominal factory setting
Voltage line regulation : 2.0% of Vout
Over Current Protection : Current limiting to 110% of maximum at the rated 25?C load
Leakage current : ac line to chassis ground is less that 1.6 mA when operated at 250 V ac (47 to 63 Hz) or lower voltages
Vibration : 0.75 g (5 to 500 Hz)
Operating temperature : –30 to 71°C (–58 to +160°F)
Operating relative humidity : 5 to 95% (noncondensing)
Operating altitude : –300 to +3,000 m (–1,000 to +10,000 ft)
Foxboro transmitters, Foxboro positioners Foxboro products: control boards, modules, meters, valves, indicators, recorders and switches, flow meters, (pressure, temperature) transmitters, sensors, positioners Applications: electric power, petroleum , chemical industry, natural gas, metallurgy, cement, papermaking, mining, textile, food, medicine, Foxboro/Foxboro Corporation of the United States, a subsidiary of Invensys Group, is a manufacturer that provides instruments, systems and services for industrial process automation , in the leading position in the same industry in the world. The solutions it provides for users include all typical intelligent field instruments, automation systems and advanced software applications, as well as the supporting comprehensive engineering.
Recommended model:
FBM211 16-channel 0-20MA input interface component 16AI
FBM212 14-channel thermocouple input interface assembly 14T/C
FBM214 8-channel HART communication input interface component 8HART input
FBM215 8-channel HART communication output interface component 8HART output
FBM216 Redundant 8-channel 0-20MA/HART communication input interface component Redundant 8AI/HART input
FBM217 32-channel discrete input interface component 32DI
FBM218 Redundant 8-channel 0-20MA/HART communication output interface component Redundant 8AI/HART output
FBM219 24-channel voltage monitoring input, 8-channel discrete output interface component 24DI/8DO
FBM223 2-channel PROFIBUS-DP field bus interface component 2DP host
FBM228 4-segment Foundation Fieldbus fieldbus interface component 4H1
