Description
Product details:
- 4409
- 2 isolated (AC coupled)
- 5 MBytes per second
- 500 VDC
- PASS (Module Status)
FAULT (Module Status)
ACTIVE (Module Status)
LOW BATT (Low Battery)
SPARE RDY (Hot Spare Ready)
UCN A (UCN Port A Active)
UCN B (UCN Port B Active)
XMIT (SMM Transmitting)
STATUS (Module Node and Diagnostic Info.) - < 20 watts
- 500 VDC

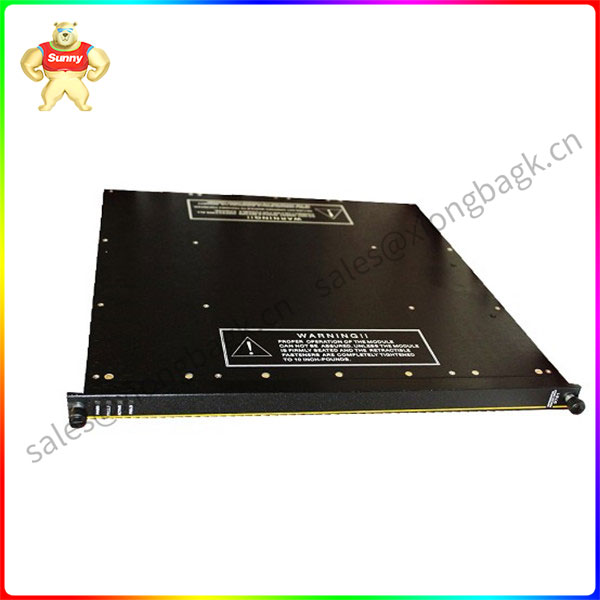

The Model 4409 Safety Manager module (SMM) serves as an interface between the Tricon Controller and the Honeywell Universal Control Network (UCN), one of the three major networks TDC-3000 distributed control systems. Appears on Honeywell systems as secure node SMMS on UCNs to transfer process information at full network data rates for use anywhere on TDC-3000. Multiple myeloma transmits Tricon alias data (including system variables) and diagnostic information to operator workstations in a familiar display format for Honeywell carriers.
The TDC-3000 provides the following functions through the SMM:
• Handle critical I/O points and pass results to DCS
• Handle Tricon alerts and propagate them to user-defined DCS destinations (console, printer, etc.)
• Reads/writes alias data to satisfy DCS requests
• Read Tricon diagnostic display is controlled by DCS
• Write protect, lock changes to the Tricon Controller tdc-3000 source
• Synchronize the master clock from the DCS
• Point-to-point communication has a number of Tricon controllers for plants, each containing a smm-DCS that can use shared data to alert downstream Tricons of significant process changes
• Event Sequence – Transmits Tricon event data to a common display or history station module recording to help determine the cause of plant trips and increase the uptime of the process
• Hot spare capability uninterrupted with Honeywell network
