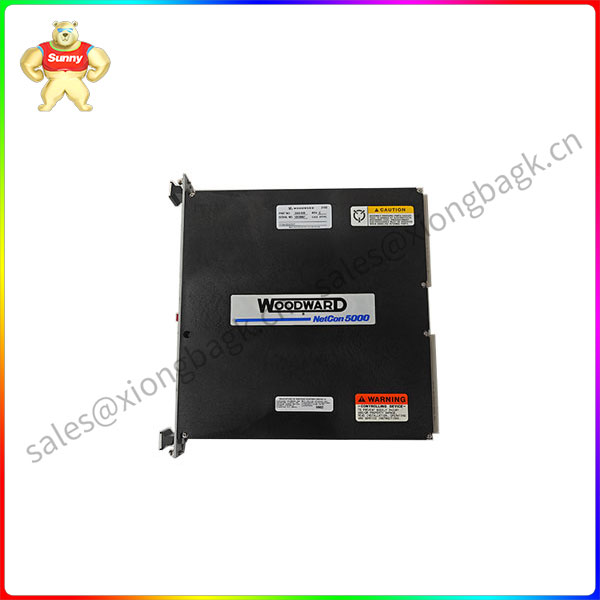

5464-658 Digital Control Module

Technical Specifications

Main Features and Advantages

The WOODWARD 5464-658 digital control module delivers precision management for industrial engines and turbine systems. Featuring a powerful 32-bit RISC processor with DSP capabilities, this module executes complex control algorithms at 1 ms update rates for real-time performance. The extensive I/O configuration (8 analog + 16 digital channels) provides exceptional flexibility for diverse industrial applications.

Multi-protocol communication: Supporting Modbus RTU, CANbus J1939, and Ethernet/IP, the 5464-658 seamlessly integrates with existing control architectures. This enables real-time data exchange with SCADA systems and distributed control networks while maintaining deterministic control performance.

Robust industrial design: Encased in an IP66-rated enclosure, the module withstands harsh environments including dust, moisture, and extreme temperature variations (-40°C to +85°C). The conformal coated circuitry provides additional protection against humidity and chemical exposure in demanding industrial settings.

Advanced diagnostics: Integrated self-monitoring continuously checks sensor inputs, output stages, and communication links. The module maintains detailed event logs with timestamped operational data, facilitating predictive maintenance and reducing unplanned downtime.

Our control specialists provide configuration support – email us for application-specific programming and system integration guidance.

Application Areas

The 5464-658 excels in power generation control, industrial turbine management, compressor station automation, and marine propulsion systems. Its robust design makes it ideal for controlling gas and diesel engines in remote locations, offshore platforms, and critical infrastructure where reliable operation is essential.

Related Products

• 5466-221: Complementary I/O expansion module
• 2301D: Woodward digital speed controller
• PROACT 4: Power management system for integrated control
