Description

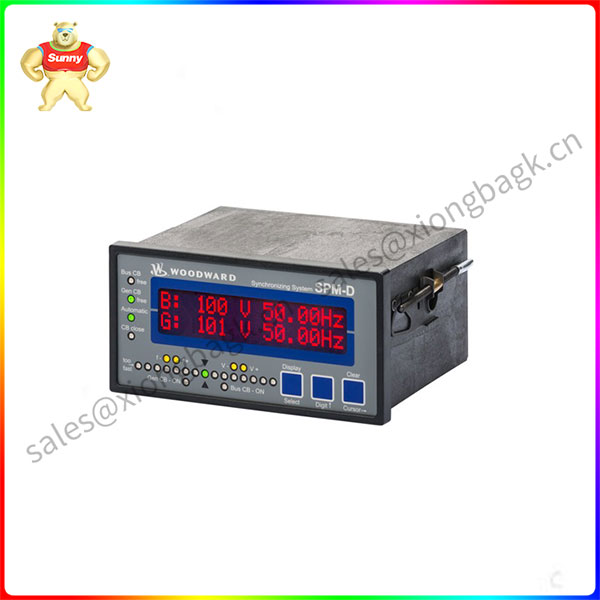

8440-1706E SPM-D11/LSXR features 12/24 VDC
Product Description
Woodward Inc. is responsible for the development and production of a large-spanning range of industrial generator modules, from speed and loading control to voltage regulator modules. This unit is a part of their SPM-D11 category of synchronizers, and designated under the numerical ID of 8440-1706. The 8440-1706 model is outfitted with the capability to provide units with a combined synchronizing ability for a circuit breaker, power factor and load factor control, and the option for isochronous load sharing and generator protection. The 8440-1706 unit is also built with a choice for operators to implement while the generator voltage matching is occuring; either the phase matching can also occur, or the slip frequency synchronization can be enabled. The mains parallel operating features the 8440-1706 is included with is a wide range of features. There is the real power control, the true RMS power calculation, as well as the soft unload feature, and the power factor control and setpoint by the adjusted parameters. This unit is also outfitted with isolated operation control features and dead bus operation features. The 8440-1706 is designed with the standard dimensions, measuring at 144 millimeters by 72 millimeters by 122 millimeters. It weighs at least 800 grams, or 1.76 lbs. The integrated LCD display has a two-line display, and provides users with information for system diagnostics and alarms.
8440-1706B
Product parameter
Product 8440-1706 is an industrial generator module developed and manufactured by Woodward. Here are some detailed features of the product:
Features:
Provides a wide range of functions from speed and load control to voltage regulator modules.
Equipped with units that provide combined synchronization capabilities for circuit breakers, power factor and load factor control.
Options for synchronous load sharing and generator protection are provided.
The ability to provide the operator with options when generator voltage matching occurs, as well as phase matching or enabling slip frequency synchronization.
It has real power control, real root mean square power calculation, soft unloading function, and power factor control and set value by adjusting parameters.
Equipped with isolated operation control function and dead bus operation function.
Design:
The standard size design is 144 mm x 72 mm x 122 mm.
The weight should be at least 800 grams (or 1.76 pounds), but please note that the weight given in some information may be slightly different, such as 2.6 kilograms.
The integrated LCD display has two lines to provide users with system diagnostics and alarm information.
Protection function:
The product has the functions of overload protection, short circuit protection, overvoltage protection and overtemperature protection, which can supply power to the equipment stably and reliably to ensure the normal operation of the equipment.
Integrated system:
It can be used in combination with DSLC-2 control, which combines functions such as synchronizer, load sensor, load control, dead bus closure system, reactive power, power factor and process control.
The dedicated Ethernet system provides seamless communication between DSLC-2 and MSLC-2 units.
A second Ethernet port is provided remotely, using Modbus-TCP’s control and monitoring functions, making the DCS and PLC interface simple.
Application field
8440-1706 products (usually referred to as Woodward controllers or related modules) are used in a wide range of industrial applications. Here are some of the main application areas:
Diesel generator control and protection: The controller can accurately control the operation of the diesel generator set, including speed, load, etc., and provide the necessary protection mechanism, such as overload protection, short circuit protection, overvoltage protection and overtemperature protection.
Control of pumps, fans and other equipment: Through its advanced control and monitoring capabilities, 8440-1706 products can achieve accurate control of pumps, fans and other equipment to improve the operating efficiency and stability of the equipment.
Control and monitoring of the motor drive system: The controller can monitor the operating status of the motor drive system in real time, and adjust and optimize it as needed to ensure the efficient and stable operation of the motor.
Motor control in plant automation systems: In plant automation systems, the 8440-1706 product can be integrated with other systems to achieve remote control and monitoring of the motor, improving production efficiency and safety.
Motor control in special environments such as ships and thermal power plants: Due to its rugged design and wide operating temperature range, the controller is also suitable for motor control in special environments such as ships and thermal power plants.
