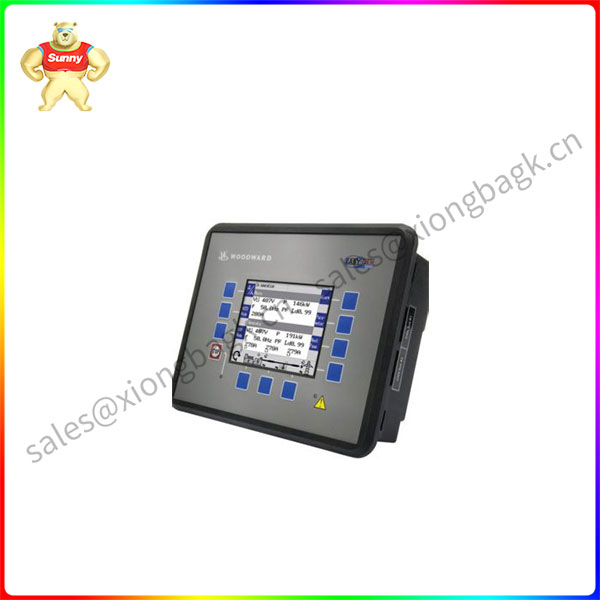

8440-1935 easYgen-3500 Series paralleling genset controllers
Product Description
Woodward’s easYgen-3500 Series paralleling genset controllers provide exceptional versatility and value for OEM switchgear builders, generator packagers, and system integrators. The easYgen-3500 combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package. Its integrated LogicsManager™ programmable logic functionality provides outstanding application flexibility and can often eliminate the need for additional PLC control, yet can easily integrate with SCADA or PLC-based control systems where desired.
The easYgen-3500 gives you the advantage of standardizing on a single, affordable genset controller for many different distributed power generation applications–from stand-alone emergency backup power to parallel load sharing of up to 32 gensets in complex, segmented distribution systems with multiple utility feeds and tie breakers.
8440-1934
Product parameter
Emergency standby: data centers, hospitals, commercial and industrial facilities
Distributed Generation (DG): utility-dispatchable power for peak demand response
Islanded prime-power: oil & gas exploration, marine, remote villages, rental/mobile
Microgrid: military, government, net-zero communities, universities
Utility paralleling: peak shaving, demand curtailment
Cogeneration (CHP): wastewater treatment, biogas production/containment
Switchgear upgrades: generator control retrofit to add load sharing/paralleling capability
easYgen-3500 Features & Benefits
All easYgen-3500 Series models include these standard features:
True RMS voltage and current sensing (gen, bus and mains) for reduced susceptibility to harmonics
CAN network communication/control to engine ECU (standard SAE-J1939 protocol and several proprietary engine OEM protocols are supported)
Serial Modbus RTU (slave) communication for SCADA annunciation and external control
Configuration via PC/laptop with Woodward ToolKit service tool
Connectivity with the RP-3500 Remote Panel for complete annunciation, control and configuration of the easYgen-3500 controller, over CANopen protocol at up to 250m distance
Compliance agency/marine* approvals: CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register
(* see marine package for further approvals)
Application field
The easYgen-3400 Series provide:
AMF (automatic mains failure) detection, decoupling and emergency run with dead bus close
Automatic synchronization: phase-match, positive/negative slip-frequency, run-up (dead field) paralleling
Circuit breaker close/open control: GCB only, GCB and MCB (ATS function), or external (no) control
Proportional load sharing (isochronous or droop) of up to 32 gensets, regardless of individual size
Base loading, import/export control, asymmetrical loading (through external base load input)
Automatic load dependent start/stop for improved generation system efficiency
Asynchronous (induction) generator control
Engine and generator protection functions, with fully programmable settings
