Description
Product details:

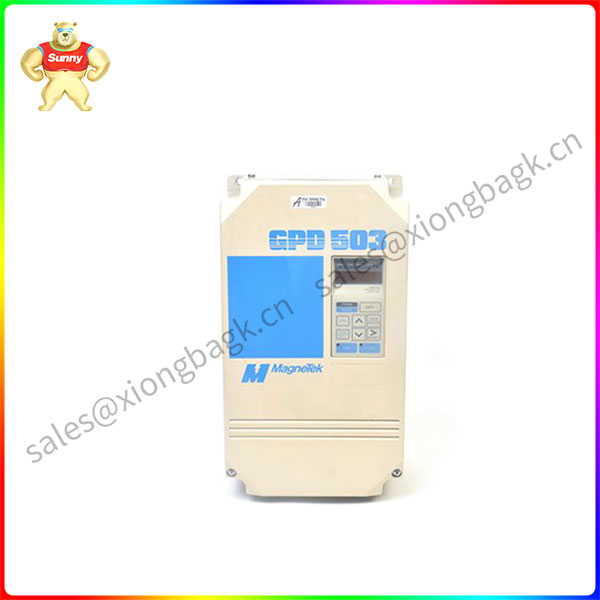

GPD 503-DS314 sinusoidal coded pulse width modulation AC motor Drive characteristics:
Adjustable voltage/frequency three-phase output
Designed for traditional squirrel-cage induction motors
Automatic stall prevention
Automatic boost
No voltage notch distortion
Yaskawa/Magnetek Series PGD-503 sinusoidal code pulse-width-modulated AC motor driver produces adjustable voltage/frequency three-phase output for full speed control of any conventional squirrel cage induction motor. Automatic stall prevention and voltage lift prevent harmful tripping under load or line-side transient conditions. The GPD-503 series does not direct any voltage line notch distortion back to the utility line and maintains a displacement power factor of no less than 0.95 throughout its speed range.
The CP-9200SH is an integrated controller fully equipped with all functions generally necessary for machine control. A suitable machine sequence or motion control can be freely designed through user programming. The CP-9200SH is composed of the following modules. Refer to the Machine Controller CP-9200SH Use’s Manual (SIE-C879-40.1) for the details of each module.
– Structure of the CP-9200SH
Power module has setting for use with 24 V, 100 V, and 200 V. Mounting bases
There are short mounting bases and long mounting bases. A maximum of four mounting bases can be connected. CPU modules
A maximum of two can be installed. Each independently executes user programs. Motion modules
Three kinds of motion modules are available: analog output type SVA module (described in this manual), pulse train output type PO-01 module, and the digital output type SVB module for MECHATROLINK. Up to total (SVA modules andlor PO-01 modules) of 16 motion modules can be mounted.
Recommended model:
DSBC170 ABB
DSCA114 ABB PLC
DSCA125A ABB Small PLC
DSCA130 ABB successfully applied
DSCA180B Development of ABB PLC in China
DSCA190V ABB DCS and PLC
DSCL110A ABB PLC function
DCS system based on ABB PLC
DSPC157 ABB CPU and Distributed
