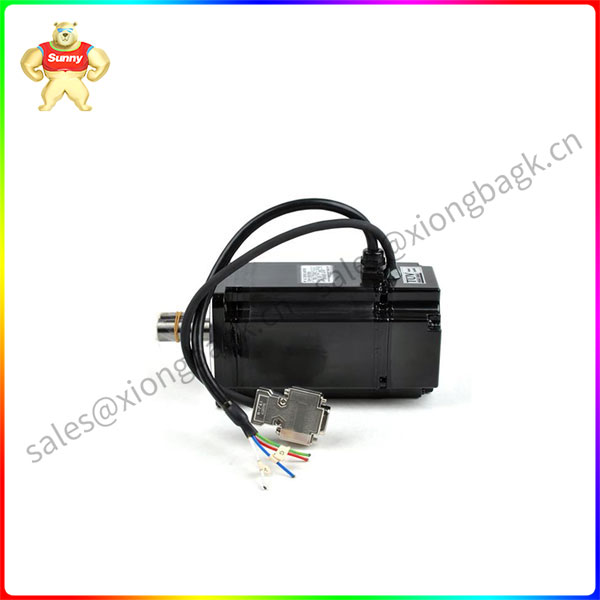

SGM-08V3B4 Ac servo motor

The CP-9200SH is an integrated controller fully equipped with all functions generally necessary for machine control. A suitable machine sequence or motion control can be freely designed through user programming. The CP-9200SH is composed of the following modules. Refer to the Machine Controller CP-9200SH Use’s Manual (SIE-C879-40.1) for the details of each module.
– Structure of the CP-9200SH
Power module has setting for use with 24 V, 100 V, and 200 V. Mounting bases
There are short mounting bases and long mounting bases. A maximum of four mounting bases can be connected. CPU modules
A maximum of two can be installed. Each independently executes user programs. Motion modules
Three kinds of motion modules are available: analog output type SVA module (described in this manual), pulse train output type PO-01 module, and the digital output type SVB module for MECHATROLINK. Up to total (SVA modules andlor PO-01 modules) of 16 motion modules can be mounted.
