Brand: Bently Nevada

P/ n:3500/53

Description: overspeed detection module

Origin: United States

Xiamen Xiongba provides 3500/40M DCS/PLC, Xiamen Xiongba Shan Ni for your quotation, and provide one-year warranty service.

3500/53 high quality affordable models.

Xiamen Xiongba Electronic Commerce Co., LTD. (Zhangzhou Branch)
Unit 2009, Creative Center, 1733 Luling Road, Siming District, Xiamen, China
M: + 86 18059884797
Email :sales@xiongbagk.cn
Website:www.sauldcs.com/www.xiongbagk.cn

Bentley Nevada’s 3500 Series Mechanical Inspection system’s electronic overdrive detection system is highly reliable and responsive

Redundant tachometer system for overspeed protection of machinery. 3500/53 modules can be used to form 2 option 2 or 3 option 2(recommended)

The voting system. The 3500 frame with the overspeed detection system requires redundant power supply.

Each overspeed detection module receives a vortex sensor or magnetic sensor signal, the input signal range is +

10.0 V to 24.0 V. Signals beyond this range are restricted within the module. Suitable for Bentley Nevada 3300 8mm eddy current

Sensors, 3300 16mm high temperature eddy current sensors (HTPS), 7200 5mm, 8mm, 11mm and 14mm eddy current transmission

Sensor, 3300 RAM eddy current sensor, or magnetic sensor.

Front panel LED Meaning: indicates that the 3500/53 module is working properly

TX/RX (Transmit/receive) LED: indicates that the 3500/53 module is communicating with other modules in the 3500 framework

Bypass LED: indicates that the 3500/53 module is in bypass state

LED: indicates that the 3500/53 module is in Test Mode

Alarm LED: Indicates that an alarm condition has occurred and that the relay associated with it has been buffered by the action sensor

Output: At the front of each module there is a coaxial connector for buffering output. Each connector is protected against short circuit and static electricity

For the speed, it can be set below or above the alarm level (set point). In addition, the speed can be set dangerous (overspeed)

The set point. All alarm setting points are set by software configuration. Alarm points are adjustable and are usually 0 ~ 100% full scale norm

Adjustment within the perimeter.

Alarm time delay: less than 30ms at frequencies higher than 300 Hz.

1) Main module, front view

2) status leds

3) Buffer sensor output, is the sensor

Provides an unfiltered output with a short circuit in the output

To protect the

4) I/O module, rear view

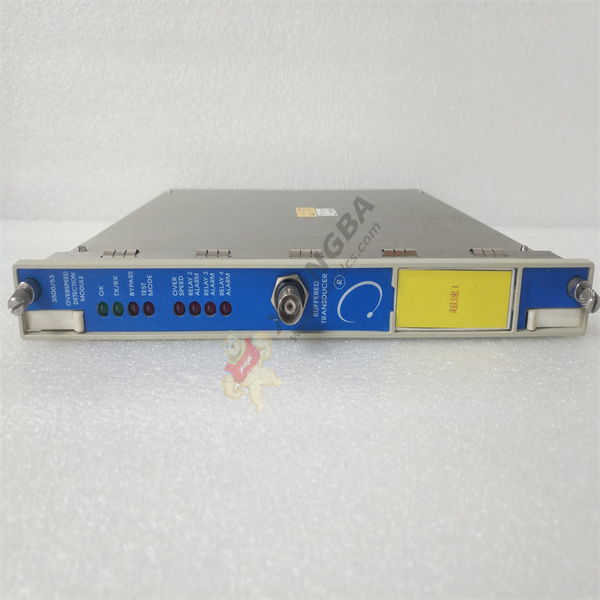

According to 3500/53 overspeed detection module front panel
