FBM222 P0926TL Profibus DP Module

Technical Information

Integrates PROFIBUS-DP/PA slave devices into the I/A Series control system
Conforms to the PROFIBUS-DP Specification IEC61158 Part 3
Supports up to 125 slave devices per port with full 244 byte data transfer
Maximizes uptime by providing redundant TAs, hot-swappable redundant FBM modules, and fully redundant communication between the FBM222 and fault-tolerant control processors
Enables addition, modification and removal of devices without impacting on-going operations
Propagates the PROFIBUS-PA device values and status to I/A Series control blocks
Provides a user-selectable status parameter for input data as well as read-back values for output data
Supports PROFIBUS-DP Class 1 and Class 2 Masters along with multi-master configurations
Provides two galvanically isolated PROFIBUS channels
Suitable for installation in Class 1, Division 2 and Zone 2 locations
Supports the FBM223 Termination Assembly allowing a simple upgrade from an FBM223 while maintaining existing wiring and cable.

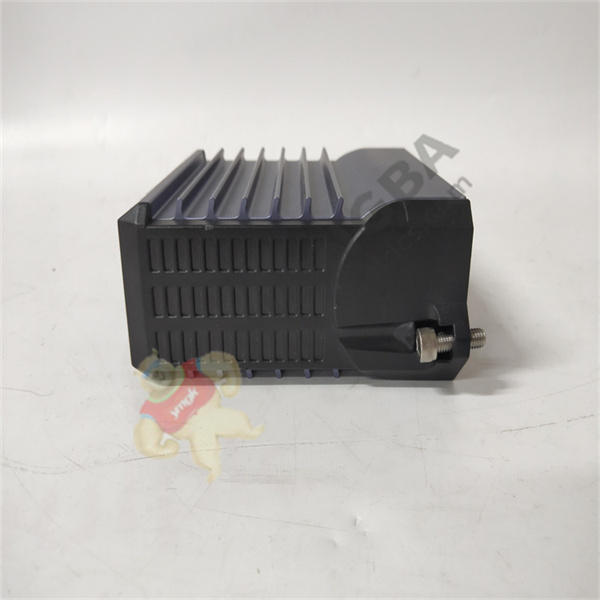

FBM222 P0926TL
