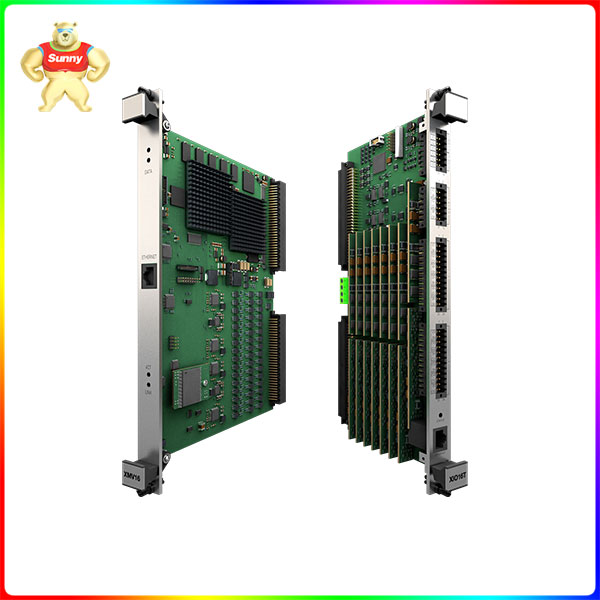

VM600 Mk2 / VM600 XMC16 + XIO16T combustion monitoring module

The VM600Mk2/VM600 XMC16 + XIO16T condition monitoring module for combustion provides 16 dynamic channels and 4 tachometer (speed) channels, all of which are independently configurable.

The VM600Mk2/VM600 XMC16 + XIO16T combustion monitoring module provides 16 dynamic channels and 4 tachometer (speed) channels, all of which are independently configurable.

Key features

16 dynamic channels and 4 tachometer channels

Up to 20 processed outputs per dynamic channel and per dual-channel (12 per XMC16)

Simultaneous data acquisition on all channels with asynchronous (fixed frequency) or synchronous (order tracked) sampling

24-bit data acquisition, high SNR data processing, with a high-resolution FFT up to 6400 lines every 500 ms

Differential signal input per dynamic channel and tachometer channel

Designed for operation with the VibroSight® software: one Ethernet connector (8P8C (RJ45)) for communication with VibroSight

Available modules

VM600Mk2/VM600 XMC16 + XIO16T condition monitoring module for combustion

VM600Mk2/VM600 XMV16 + XIO16T condition monitoring module for vibration
