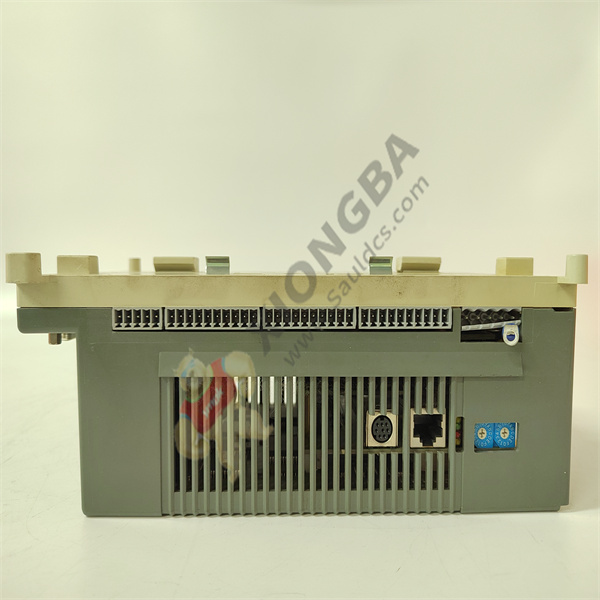

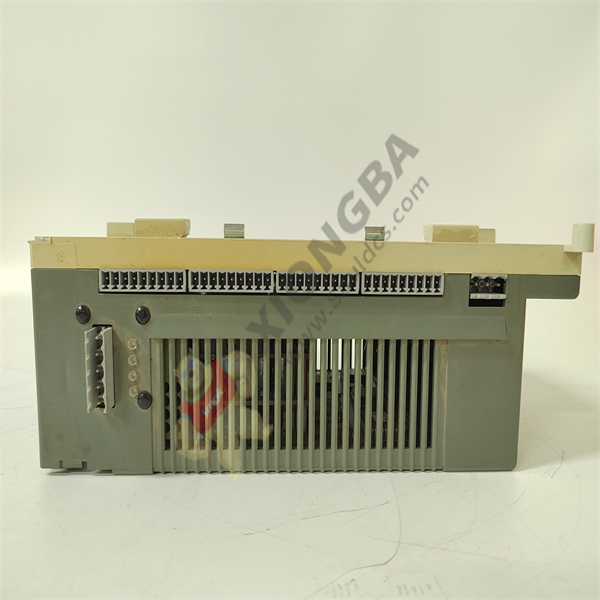

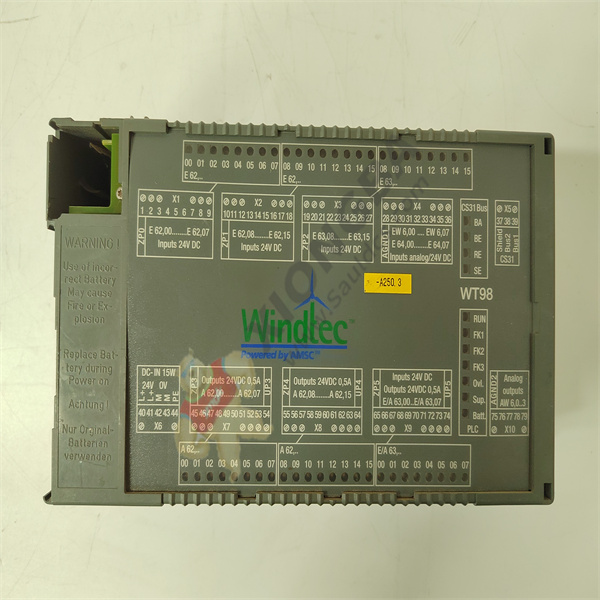

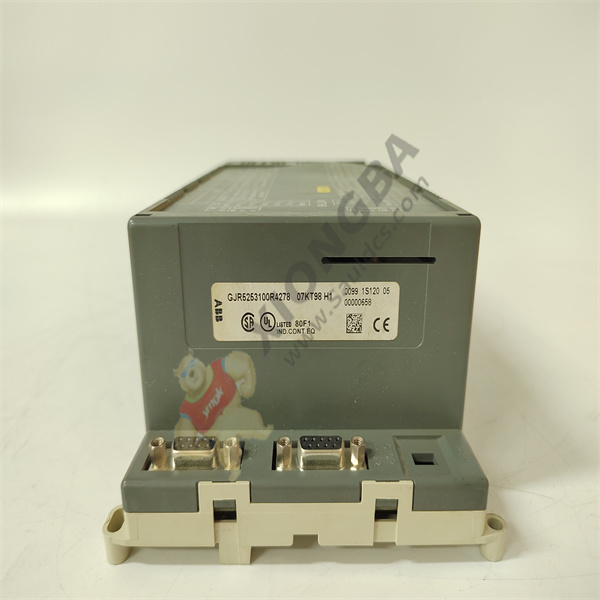

07KT98 GJR5253100R4278 ABB central processing unit

07KT98 GJR5253100R4278 ABB central processing unit

[Product features]

① Brand:ABB

② Model:07KT98 GJR5253100R4278

③ product category:central processing unit

④ Payment:T/T,USD,Western Union

⑤ Freight: The freight in different areas shall be subject to the local freight forwarder.

⑥ Does it include tariffs: it does not include any taxes.

⑦ Packaging: Use the seller’s safe packaging.

07KT98 GJR5253100R4278 ABB central processing unit

Category: Tags:

Description

07KT98 GJR5253100R4278 ABB central processing unit

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ:3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

  • Product ID:
    GJR5253100R0278
  • ABB Type Designation:
    07KT98
  • Catalog Description:
    07KT98:AC31 S90,SPS(AC1131),ETHER.+
07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

07KT98 GJR5253100R4278

  • ABB Type Designation:
    07KT98
  • Ambient Air Temperature:
    Operation 0 … +55 °C
    Storage -25 … +75 °C
  • Analog Inputs:
    8 channels, 0 … +5V, -5 … +5V, 10 bit +sign, 0 … +10V, -10 … +10V, 11 bit+sign, 0 … 20mA, 4 … 20mA, PT100 (2 or 3 wire), 12 bit, bipolar, the analog inputs are also usable as digital inputs
  • Analog Outputs:
    4 channels, -10 … +10V, 11 bit+sign, 0 … 20mA, 12 bit
  • CS31-Bus:
    1
  • Country of Origin:
    Germany (DE)
  • Customs Tariff Number:
    85371091
  • Data Sheet, Technical Information:
    2CDC121009D0202
  • Declaration of Conformity – CE:
    1SAD938504-0047
  • Environmental Information:
    1SAA960001-2401
  • Fieldbus Interface Type:
    Ethernet TCP/IP, CANopen master
  • Gross Volume:
    5.508 dm³
  • Gross Weight:
    1 kg
  • Instructions and Manuals:
    2CDC121009D0202
  • Invoice Description:
    07KT98:AC31 S90,SPS(AC1131),ETHER.+
  • Made To Order:
    No
  • Maximum Hardware Counter Input Frequency:
    50 kHz
  • Maximum Number of Analog I/Os:
    232 AI, 224 AO
  • Maximum Number of Digital I/Os:
    1040
  • Memory Size User Data:
    1000 kB
  • Memory Size User Program:
    1000 kB
  • Memory Type User Data:
    Flash EPROM
  • Memory Type User Program:
    Flash EPROM, non-volatile RAM, SMC
  • Minimum Order Quantity:
    1 piece
  • Number of Digital Configurable I/Os:
    8
  • Number of Digital Inputs DC 24V:
    24
  • Number of Digital Outputs DC 24V:
    16
  • Number of Hardware Counters:
    2
  • Object Classification Code:
    K
  • Order Multiple:
    1 piece
  • Output Current:
    0.5 A
  • Output Voltage (Uout):
    24 V DC
  • Package Level 1 Gross Weight:
    1.2 kg
  • Package Level 1 Units:
    1 case
  • Parallel Extension:
    1
  • Part Type:
    New
  • Primary Voltage:
    24 V
  • Product Depth:
    85 mm
  • Product Main Type:
    07KT98
  • Product Name:
    07KT98:AC31 S90,SPS(AC1131),ETHER.+
  • Product Net Weight:
    1 kg
  • Product Type:
    Spare_Parts
  • Programming Software:
    AC1131
  • Quote Only:
    No
  • Real-time Clock:
    Yes
  • RoHS Information:
    1SAA960003-4401
  • RoHS Status:
    No declaration needed
  • Selling Unit of Measure:
    piece
  • Serial Port 1 Type:
    RS232 / Programing, Modbus Master or slave
  • Serial Port 2 Type:
    RS232 / Modbus Master or slave, ASCII
  • Short Description:
    07KT98-ETH-CAN:AC31,Prog.Log.Controller
  • Speed for 1000 instructions (65% Logic, 35% Word):
    0.07 ms
  • Stocked At (Warehouses):
    Menden, Germany
    Ladenburg, Germany
  • Terminal Type:
    Screw Terminals, Pluggable
  • UL Certificate:
    1SAA960000-1601
  • UNSPSC:
    32151705
  • WEEE B2C / B2B:
    Business To Business
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • eClass:
    27-24-22-07
