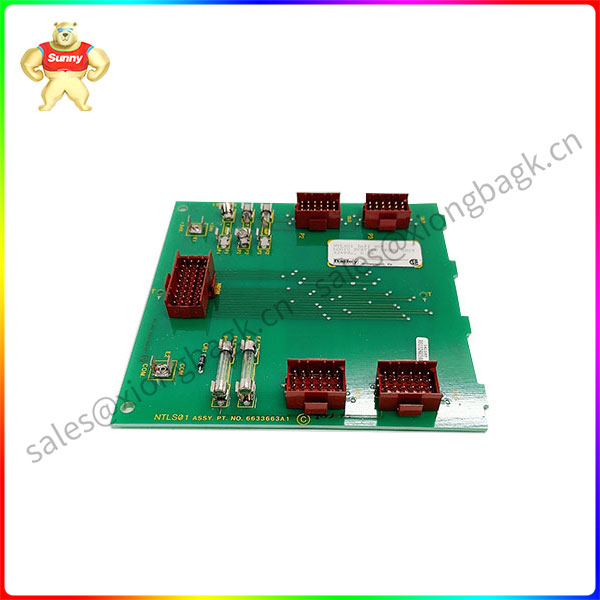

NTLS01 Multifunctional processor terminal module

The NIMP01 terminal module also works with the INIIT02 infini-net to infini-net transfer module. The INFI-NET to INFI-NET Transmission module (IIT) supports two-way communication through two RS-232-C ports. Port 1 only passes system data. Port 2 can be used to transfer system data or as an interface diagnostic port. Central IIT modules can be used for a variety of means to connect to satellite IIT modules such as modems, microwaves and transceivers. The module communicates directly with the local network interface I/O module connected to the infini-net ring through the I/O extension bus.
INFI-NET to Computer Transmission Module 2 (ICT) provides the operating computer interface for electronic devices needed to guide international networking. It handles all communication with the host computer via the Multifunctional Processor Interface (MPI) or RS-232-C serial port. The MPI interface can act as a DCE or data terminal device. NIMP02 Terminal module Used to terminate redundancy NIMP01 terminal module module
