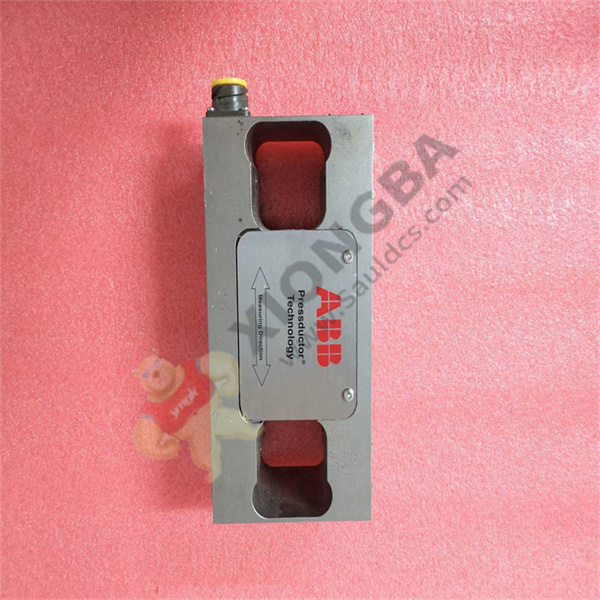

PFTL101B 5.0KN Cross sectional measurement Pressure magnetic indenter

Description

PFTL101B 5.0KN Technical Articles

The load cell is very robust and can withstand high overloads. The data of a Pressductor load celldoes not change slowly, but in steps, usually in connection with an event in the mill. Excessiveoverloading usually results in permanent shifting of the zero point.Poor contact in the junction box causes intermittent faults. Both sensitivity and zero point may vary.Check all screw terminals. Do not use pins crimped to the connecting wires, as these often workloose after a time.The cabling, especially the cable to the load cell, is the part that is most exposed to damage.Since the resistance of the load cell windings is low, it is easy to check the load cells and cablingfrom the control unit.Typical readings are 1 Ω for the resistance of the primary winding and 1-3 Ω for the output impe-dance of the secondary winding.Insulation faults in the cabling or the load cell may cause incorrect sensitivity or unstable zero point.When the load cell circuits have been isolated from earth and from the control unit at the discon-nectable terminals, it is easy to measure the insulation from the control unit.If the cables are not routed correctly, they may pick up interference from other cables.

To order:Email below sales@xiongbagk,cn

【Manager: SUNNY】

【Mobile: +86 18059884797】

【Whatsapp/ Wechat/Skype: +86 18059884797 】

PFTL101B 5.0KN
