Description
PFVL141R ring load cell PFVL141R
PFCL 201C pillow block tension meter vertical load cell, with cylindrical plug connection; Measuring force range: 5~50KN;
PFCL201CD/CE pillow block tension meter vertical load measuring element, using cable sealing joint/fixed cable connection with protective hose, force measuring range: 5~50KN;
PFTL 101A Horizontal load cell, cylindrical plug connection, force range: 0.2~2KN.
PFVL141R ring load cell PFVL141R
PFTL101AE pillow type tension meter horizontal load cell, fixed cable connection, force range: 0.2~2KN.
PFTL101AER acid resistant type pillow block tension meter horizontal load cell, fixed cable connection, force range: 0.2~2KN. It is used to measure the tension of the wet end of papermaking.
The protection grade can be up to IP66/67
PFTL101B pillow type tension meter horizontal load cell, cylindrical plug connection, measuring force range: 2~20KN.
The specific models are:
PFTL101A, PFTL101AE, PFTL101AER, PFTL101B, PFTL201, PFTL301E, PFCL201C/CD, PFCL201CE, PFEL111, PFEL112, PFEL113, PFEA111, PFCL201C, P FTL101B, PFTL101BE, PFTL101BER, PFTL201C, PFCL301E, PFTL301E, PFRL101D, PFRL101C, PFRL101B, PFRL101A, PFEA113, PFEA112, PFEA111, PFTL 201CE, PFTL201D, PFTL201DE, PFVL141V, PFVL141C, PFVL141R, PXAH401, PFVA401, PFBL141B/C, PFEA101, PFVL142V, PFVL142C, PFVL142R. The specific specifications are selected according to the physical quantity measured on site. The tension measuring instrument is divided into IP20 and IP65 protection levels, and selected according to the installation environment. The models are: PFEL111, PFEL112 and PFEL113.
PFEL111: No DP port and can be connected to two indenters
PFEL112: With DP port, it can connect two indenters
PFEL113: With DP port, can connect to 4 indenters

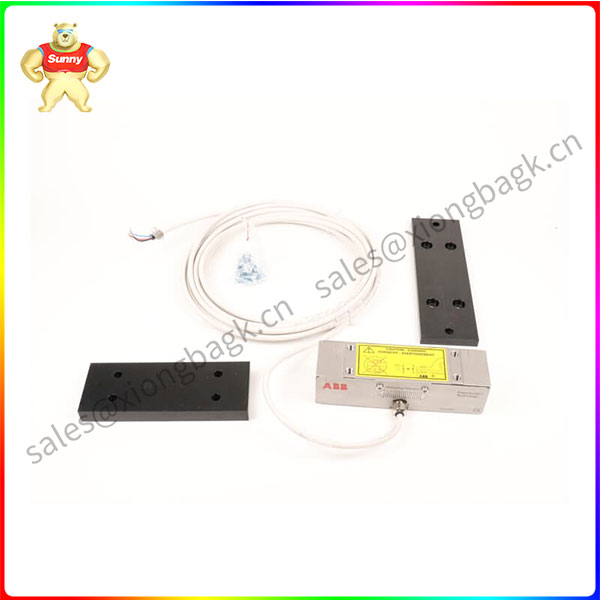

PFTL101A
The load cells are installed under the roll bearings,where they measure forces parallel to themounting surface.
The reactive force from the weblstrip, which is proportional to the weblstrip tension, is transferredto the load cells via the roll and the bearings
The load cells are connected to the control unit via a junction box.The control unit converts theload cell signals to DC voltages that are proportional to the reaction force. Depending on whichcontrol unit is chosen, it is possible to have the analog signals for the two individual load cells (Aand B), the sum of the load cell signals (A+B), and/or the difference between the load cell signals(A-B).
The load cell only measures force in the direction FR The measurement force may be positive or negative.The load cell is normally installed under the roll bearings. When there is a web/strip in tension over the roll, the tension (T) gives rise to two force components, one in the direction ofmeasurement of the load cell (Fand one at right angles (F W The measuring force depends on the relationship between the tension (T) and the wrap angleformed by the weblstrip around the measuring roll.
The load cells in the PFTL 101 family are available in six different measuring ranges from 0.5 to 20kN and two different sizes (see2.2 Technical Data).Each load cell is individually calibrated andtemperature compensated.
The load cells are usually mounted and fixed to a base and a bearing housing with six screws, fouron one side of the load cells and two on the opposite side.
For all load cells of type PFTL 101 the load cell house is machined from a single block of steel.Asensor is then welded into the load cell house and oriented so that it is sensitive to force in thedirection of measurement and insensitive in other directions.
The load cell types PFTL 101A, PFTL 101AE,PFTL 101B and PFTL101BE are made of stainlesssteel.
PFTL 101A and PFTL 101B are equipped with a connector for the pluggable connection cable.PFTL 101AEand PFTL 101BE are equipped with a fixed connection cable.
Load cell types PFTL 101AER and PFTL 101BER are specially designed for installation in corrosiveenvironment. They are made of acid resistant stainless steel and they also have a fixed connectioncable.
Dimensions for all load cell types are given inA Drawings.
Contact Us
Email: sales@xiongbagk.cn
Tel: + 86-18059884797
Whatsapp:+86-18059884797
Website: www.sauldcs.com
Address:Unit 2009, 20th Floor, 1733 Lvling Road, Siming District, Xiamen
Shipment: EMS,DHL,UPS & FEDEX
Payment: T/T
Supply Ability: 30 Unit/Units per Month
Price: The more you order ,the lower price you will get
Delivery: In stock,within 3 days send the products
PFTL101A
1. Model: PFEA111
Description: Conventional control unit, can be connected to 2 indenters, according to the different application environment, has IP20 and IP65 protection levels, PLC interface signal is 0-10V DC, various calibration and range parameters can be set on site.
2. Model: PFCL201C
Description: Pillow block tension meter vertical load cell, connected with cylindrical plug; Measuring force range: 5~50KN;
3. Model: PFCL201CD/CE
Description: Pillow block tension meter vertical load element, using cable sealing joint/fixed cable connection with protective hose, measuring force range: 5~50KN;
4. Model: PFTL101A
Description: Pillow block tension meter horizontal load cell, cylindrical plug connection, force range: 0.2~2KN.
5. Model: PFTL101AE
Description: Horizontal load cell of pillow block tension meter, fixed cable connection, force measuring range: 0.2~2KN.
6, Model: PFTL101AER PFCL201CE 20KN
PFVL141V rectangular load cell
