Description

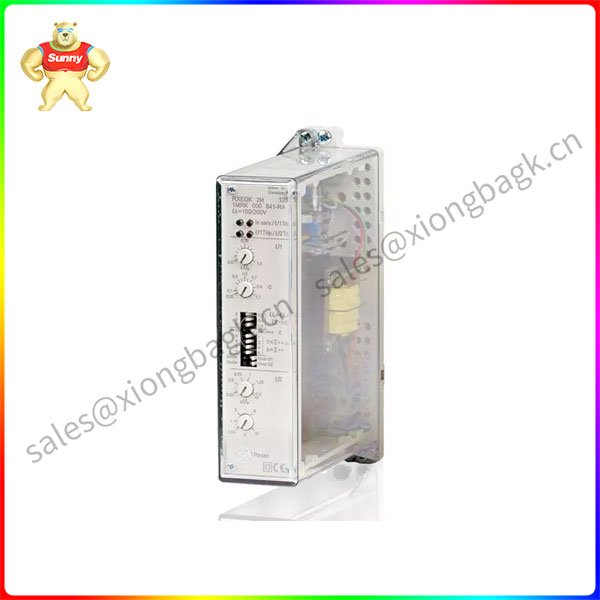

RXIDK 2H 1MRK000838-HA Time-overcurrent relays and protection assemblies
RXIDK 2H relay and assemblies
• Single-, two-, three-phase and three-phase to earth variants for short-circuit and earth fault protection
• Independent measuring elements with; In service, start and trip indications per phase
• Test switch, DC/DC converter and heavy duty trip relays are available as specified options
• Micro-processor based time-overcurrent relay with continuous settings for current operate values and time delays
• Three current range variants, with wide setting ranges
• Low set stage 0,015-0,65 A or 0,075- 3,25 A or 0,375-16,25 A
• High set stage or 0,02-8 A 0,1-40 A or 0,5-200 A and ∞ *)
*)16 2/3 Hz alternative version 0,075-40 A or 0,0375-200 A and ∞
• Low set stage programmable for the following time characteristics:
– Normal inverse
– Very inverse
– Extremely inverse
– RI-inverse time
– Long time inverse
– Definite time delay settable 50 ms-8,1 s
• Available with optional filters for different frequency characteristics 0,2 A Variant
– 50-60 Hz sharp
– 150-180 Hz sharp
– 40-2000 Hz flat 1 A and 5 A Variants
– 50-60 Hz sharp
– 150-180 Hz sharp
– 40-2000 Hz flat
– 16 2/3 Hz flat
• High set stage can be delayed up to 1 s for fuse selectivity coordination
• Reset ratio 95% enables a setting close to maximum load current
• Recovery time < 40 ms enables small time steps between time selective protection
• Low transient overreach i.e. the relay is insensitive to dc component in fault current. RXIDG 21H relay and assemblies
• Pioneering method for selective sensitive earth fault protection in solidly earthed systems
RXIIK-4–1MRK001643-AA
RXIDK is a time-overcurrent relay mainly used as short-circuit and earth fault protection on all types of objects in the network. The
available different time-lag characteristics and the short recovery times, together with the independent measuring element in each
phase, ensures suitability on networks of major importance, where selectivity and short back-up tripping times are essential.
By selecting from six time characteristics available on the relay makes RXIDK suitable for protection of a variety of power apparatus
including applications requiring coordination with existing time-overcurrent relays. RXIDK is directly replacing RXIDF.
RXIDK has LEDs on the front for indication. The delay on the high set stage achieves selectivity on fuses. RXIDK has one fully
isolated binary input. With the dip switch on the front it can be used to enable or block the
relay, or raise the operate value of the low set stage (I>) with 40% for “cold load” restoration of a system.
