Description
It has rich functions such as real-time multitasking, virtual storage, file processing and network processing. The main software is developed in the advanced language programming environment, and has powerful programming functions such as graphic display, database processing and network communication. Strong secondary development ability and excellent compatibility with other systems. Full Chinese pull-down menu, user interface is very friendly, and the operation is extremely convenient. It has complete signal processing function for fault analysis of rolling mill mechanical equipment and perfect fault diagnosis expert system function.
Function of system
1. Real time continuous data collection and display function
It has complete and reliable on-site signal pickup function;
Collect all oscillation signals of storage equipment in quasi continuous, extremely high-speed and synchronous whole cycle; l
It can collect speed and process parameters related to equipment conditions at high speed and accurately;
Dynamically display the operation status of the equipment. l
2. Flexible and convenient configuration software
Supply configuration software, which can arbitrarily combine the real-time monitoring display screen according to the needs, meet the various requirements of users and improve work efficiency.
3. Be able to actively identify the operation status of the equipment
Normal operation;
Startup and shutdown status;

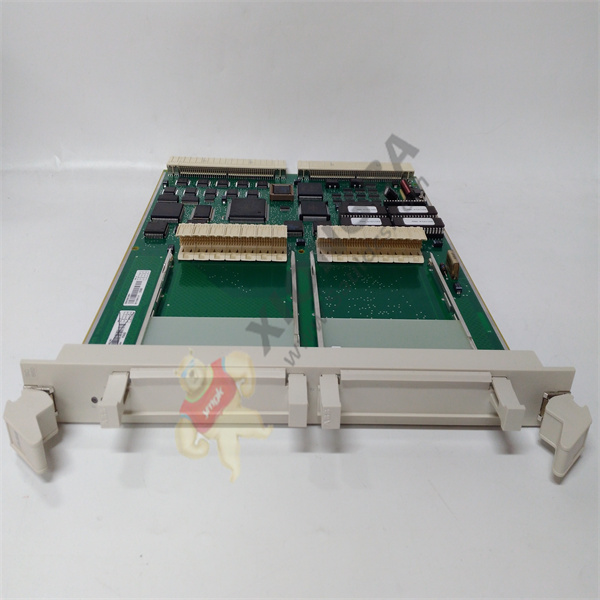

SC560 3BSE008105R1
No load condition, abnormal oscillation condition, etc.
4. It can actively form a variety of complete databases to realize incident recall
Historicaldatabase includes: hour database, day database, month database and year database;
Event database: including startup and shutdown events, abnormal change events, alarm events, etc;
5. Provide complete oscillation analysis function
Time domain analysis: waveform, axis orbit, axis orientation and shafting motion simulation
Frequency domain analysis: spectrum, waterfall diagram, cepstrum, envelope spectrum, refined spectrum, phase diagram and wavelet transform;
Variable speed process: Bode diagram, polar coordinate diagram and cascade diagram;
Trend analysis and related trend analysis;
Comparative analysis;
6. Complete fault diagnosis expert system
The knowledge base with different diagnostic objectives can be protected. It has a strong ability to actively obtain symptoms, and can actively diagnose and dialogue the common oscillation problems of the equipment.
7. Have a variety of balance accounting methods
Least square method influence coefficient accounting and dynamic balance accounting;
Calculation of influence coefficient and dynamic balance by harmonic weight method;
Vector addition and subtraction, and other functions.
8. It has powerful network function
TCP / IP communication protocol and Winsock programming are selected to provide fast, safe and reliable long-distance service network interface to realize long-distance monitoring and fault diagnosis.
9. The hardware adopts building block modular distributed master-slave distributed structure, which has high reliability and convenient protection.
10. All application software are self-developed and have excellent compatibility with other systems, which can fully meet the special requirements of users in time.
