1394-SJT05-A  analog servo system

Description

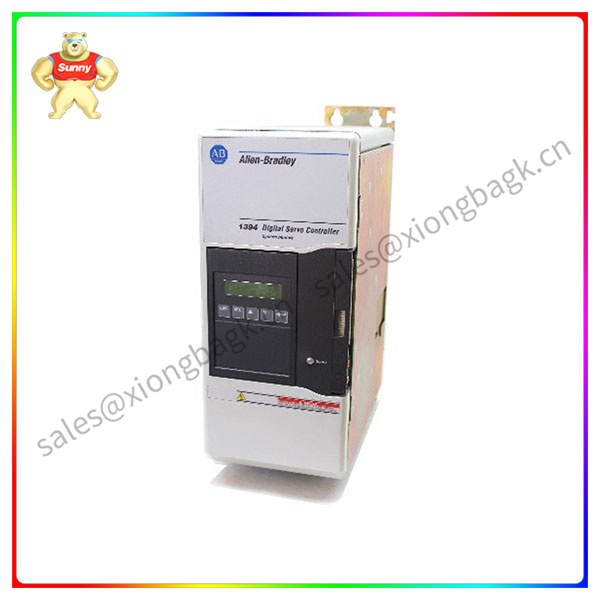

1394-SJT05-A  analog servo system

The 1394C-SJT05-A  is an analog servo system. It offers a digital servo drive system with a traditional

+10 Volts DC analog interface. It also may be used as a torque and velocity control system and quickly

commissioned with the Allen Bradley universal bulletin 1201 HIM (human interface module). This human

interface module permits access to auto-tuning and starts up prompting. The analog system also provides a scan port interface as a standard feature.

The availability of the system modules is with a rating of 5, 10, and 22 kiloWatts (at 460 Volts). It houses

the system control PCB and converts 360 to 480 Volts AC. It has a three-phase DC link voltage of 50/60

Hertz input power to a 530-680 Volts DC link voltage. There is an internal shunt resistor in both the 5 and

10 kiloWatt modules. This module has an internal shunt resistor with a 200-Watt continuous rating and

peak rating of 40,000 Watts. An external shunt module is required for the 22 kiloWatt system modules.

1394-SJT22-A

Ensure a specified amount of the cable insulation and a braided shield are removed from the feedback cable. The

cable wire and the exposed braided shield clamp should be placed accordingly, and the clamp screw tightened. Then

thread the bracket screw into the bottom of the system module and tighten.

The 1394C-SJT05-A supports standard GMC and GMC Turbo CNC interface, servos and analog servo configuration

with a standard array of hardware. It can adjust the velocity and current loop compensation digitally, which offers a

wide range of systems. The module’s dimensions are 13.8 x 11.0 x 5.91 inches (350 x 280 x 150 millimeters) and it weighs 23.5 pounds (10.68 kilograms).
