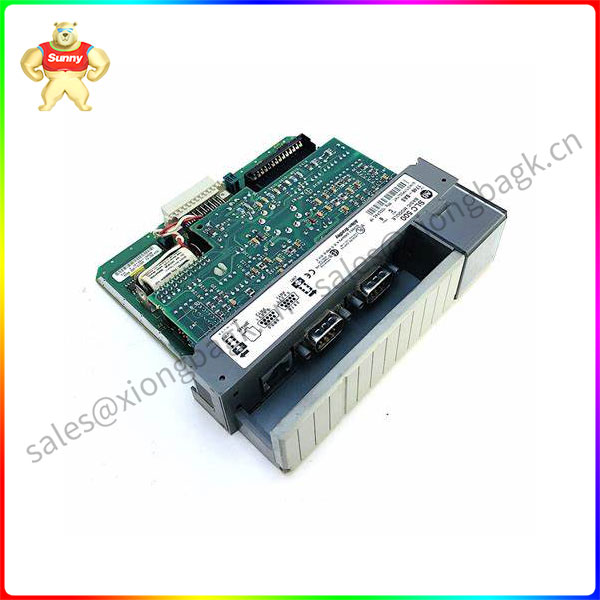

1746-BAS Allen-Bradley Single slot module

Description

Technical Description 1746-BAS：

The 1746-BAS is a single slot module for SLC 500 modular or stationary hardware. This module is the basic language module used to interface with human-machine interface (HMI), printers, modems, and other devices for machine-level data collection and integration,
1746-BAS module has communication ports such as PRT1, PRT2 and DH485 communication interfaces. PRT1 is dedicated to connecting BAS modules to user devices at 300, 600, 1200, 2400, 4800, 9600 and 19200 baud rates in full duplex mode. The port can be configured in RS232, 423/422, or 485 mode. PRT2 can also be used on user devices and can also be used to connect modems using the DF1 protocol. It also supports RS232/423 and RS422/485 communication modes with the same baud rate as PRT1. DH485 Communication terminal Used for DH485 network. It is a non-isolated port and requires 1747-AIC to connect the port to the DH485 network. Keep in mind that when PRT2 is configured as DF1 or used to interface with a modem, the DH485 communication port is disabled.
Allen Bradley 1746-BAS is the basic language module of the SLC500 system. It enhances the functionality of any SLC 500 system by adding report generation and data collection capabilities. It can connect to modems, printers, operator interface terminals, and other external devices through two configurable channels. The 1746-BAS-T module is a high-speed version of the same as this module, with a different optional memory module. The 1746-BAS module has a memory size of 24KB with battery-powered RAM. Its power load function is 0.150 at 5 volts DC and 0.040 at 24 volts DC. Communication, the use of RS-232/423, RS-422, RS-485, DH-485 ports, the maximum communication distance 1230 meters.
For SLC 5/01 processors and higher, it has a standard data transfer rate of 8 input words and 8 output words. The 1746-BAS module provides simple data collection and integrated program debugging environment. It has flexible data storage options and operation interface functions. Its user interface provides easy access to editor functions, and has advanced programming environment; In addition, 1746-BAS offers users extensive online help. It also has other features such as clock, calendar, advanced text editor and 8 LED indicators for module diagnosis and operation interface, among others. It has NEMA standard immunity and operating temperatures of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
