Description

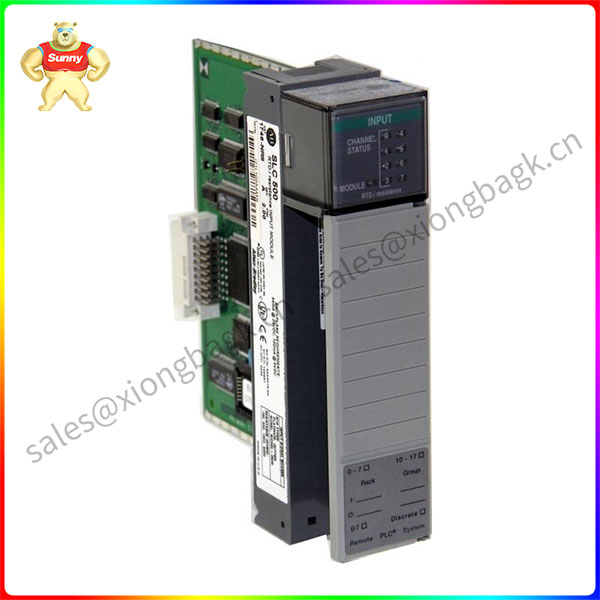

1746-NR8 SLC 500 RTD/Resistance Analog Input Module
The 1746-NR8 is a Resistance Temperature Detector (RTD) / Resistance module. This module accepts
resistance signals from RTD sensors such as Platinum (385) 100, 200, 500 and 1000; Platinum (3816)
100, 200, 500 and 1000; Copper (426) 10, Nickel (618) 120, Nickel (672) 120, and Nickel Iron (518) 604
and direct resistance values of 0 – 150 Ohms, 0 to 500 Ohms, 0 to 1000 Ohms and 0 to 300 Ohms.
This module is exclusively used for SLC 500 systems. It may be specifically used with the Two (2) variants
of SLC 500 such as Fixed and modular hardware style. It occupies single slot of any chassis used and
does not require an external power supply instead, this module is powered by the backplane power generated by the system power supply.
This module is primarily used for Temperature applications as RTD sensors are specifically used to
measure temperature readings. The resistance capability of this module is applicable for measuring
displacement or movement or mechanical devices. Typically, it is used for measuring the length of
travel, movement reflected by the decrease and increase in the resistance reading.
This module supports 2-Wire, 3-Wire, and 4-Wire RTD sensors. For a 2-wire RTD, recommended wires
are Belden 9501 shielded cable or equivalent. For a 3-Wire or 4-Wire RTD, use Belden 9533 or Belden
83503 cable. For a 2-Wire RTD, avoid long cable runs as it reduces accuracy of measurement. It cannot
be avoided, the effect or long wires may be minimized by using a lower gauge cable such as an AWG #16 wire instead of AWG #24.
