1746-OV16 Allen-Bradley SLC 500 discrete sinking output module

Description

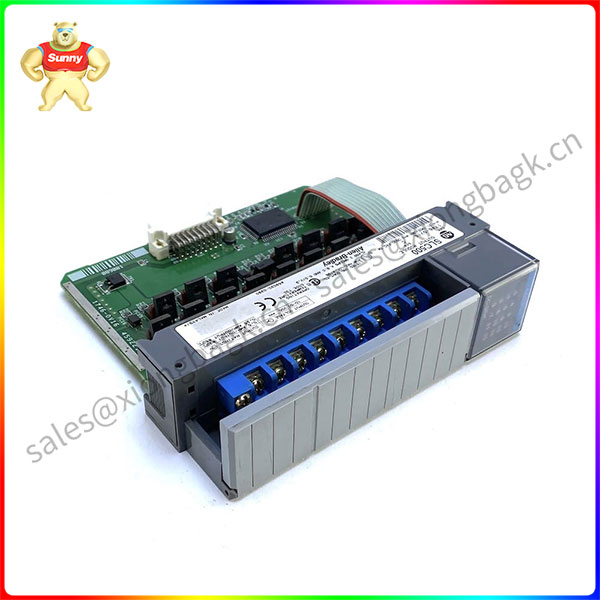

1746-OV16 Allen-Bradley SLC 500 discrete sinking output module

The 1746-OV16 is a discrete output module built by Allen Bradley. The module is equipped with sixteen (16) output channels in one (1) channel group. It is an absorbing output module that provides a 10-50VDC output voltage range with a minimum output of 24VDC. The module is ideal for powering electrical loads operated by DC, such as relay coils, indicating and sounding devices.

The backplane current consumption of the 1746-OV16 at 5v DC voltage is 0.270 amps, the turn-off leakage current is 1 mA, and the minimum load current is also 1 mA. The output module has a signal delay of 0.1ms (from on to off) and 1.0ms (from off to on) for each channel. The continuous output current at each point of the module is 0.50 A at 30°C(86°F) and 0.25 A at 60°C(140°F), while the continuous output current per module is 8.0 A at 30°C(86°F) and 4.0 A at 60°C(140°F). The maximum on-off voltage drop of the module is 1.2V at 0.5A

The 1746-OV16 has A surge current of 3.0 A per point for 10 ms, repeated every 1 second at 30°C(86°F) and 2 seconds at 60°C(140°F).

The 1746-OV16 is installed in the SLC 500 chassis. It is a single slot width module that connects directly to modular style SLC 500 hardware. It comes with a detachable junction box pre-installed on the module. The terminal board can be removed from the module for simpler and faster wiring activity.

This is a 16-channel output module compatible with SLC 500 systems. Each point lost 0.388 watts of heat, for a total of 7.6 watts. The 1746-OV16 comes with a removable strip that allows you to easily connect or modify the wiring on the module. It operates in a voltage range of 10-50 volts DC. Its backplane power consumption (0.27A) is higher than that of the 1746-OV8 and 1746-OVP16 modules. The 1746-OV16 has a maximum signal delay of 0.1ms when on and 1ms when off. Its sustained currents per output and per module are respectively 0.5A and 8A at 30°C and 0.25A and 4A at 60°C. The maximum turn-off leakage of 1746-OV16 at 0.5A and 3A is 1 mA, the maximum on-state voltage drop is 1.2V, and the maximum inrush current at each point is 10ms.
