Description

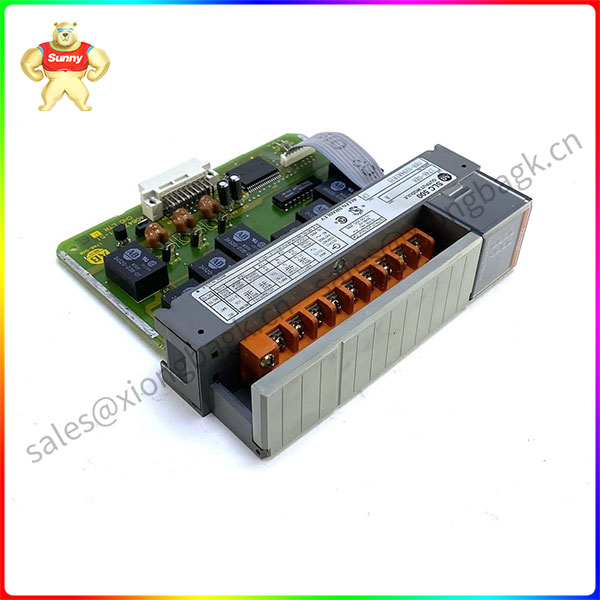

1746-OX8 Allen-Bradley SLC 500 digital contact output module
The Allen-Bradley 1746-OX8 is an SLC 500 digital input/output module. The output module has 8 individually isolated high-current relay contact outputs. It is also a normally open relay output module with a maximum relay contact rating of 30 A at 120 V AC and 15 A at 240 V AC. When the two AC voltages are continuously 5 A, the on-off current of the module is 3600 VA and the on-off current is 360 VA. For DC voltage, the maximum on and off current is 0.22 A at 125 V DC and 1.2 A at 24 V DC. Continuous 1 A at 125 V DC and 2 A at 24 V DC both have 28 VA on and off. This module provides status indicators. It can be mounted in a case and has an open housing. You must remember that modules can only be installed and removed if the chassis is not powered up.
It has an output current of 3 A at 120 volts AC and 1.2 A at 24 volts DC. The module operates in the voltage range of 5-125 volts AC and 5-265 volts DC. The floor current consumption is 0.085 A at 5 volt DC and 0.090 A at 24 volt DC. It also has a maximum resistance load signal delay of 10 milliseconds, whether off or on. The module has a minimum load current of 10 MA at 5 volt DC and a maximum on-off leakage of 0 mA. Note that the continuous current of each module should be limited to 1440 VA. The module has NEMA standard ICS 2 to 230 immunity and 1500 optoelectronic isolation between the I/O terminals and the control logic. The operating temperature range of the module, especially for the air around the system, is from 0 to 60 degrees Celsius, and the storage temperature range is from -40 to 85 degrees Celsius. Its operating vibration has a peak displacement of 0.015 inches at 5 to 57 Hz and an acceleration of 2.5 grams at 57 to 2000 Hz. The operating impact of the module is 10g. The 1746-OX8 module has a heat loss of 0.825 watts per point, a minimum heat loss of 2.590 watts and a total heat loss of 8.60 watts.
