Description

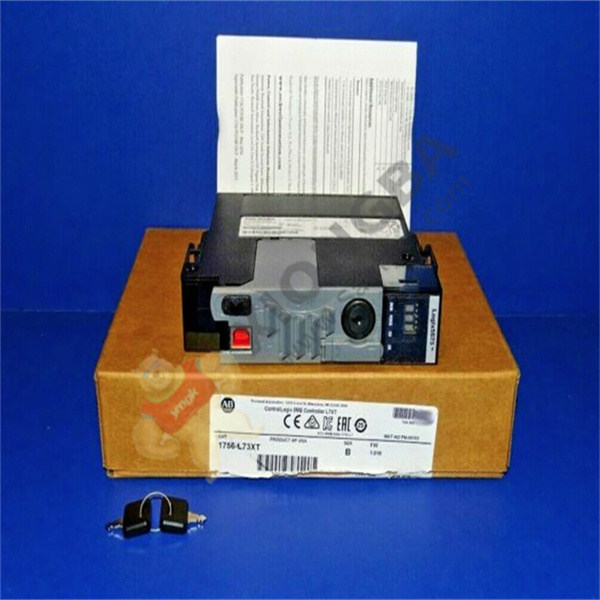

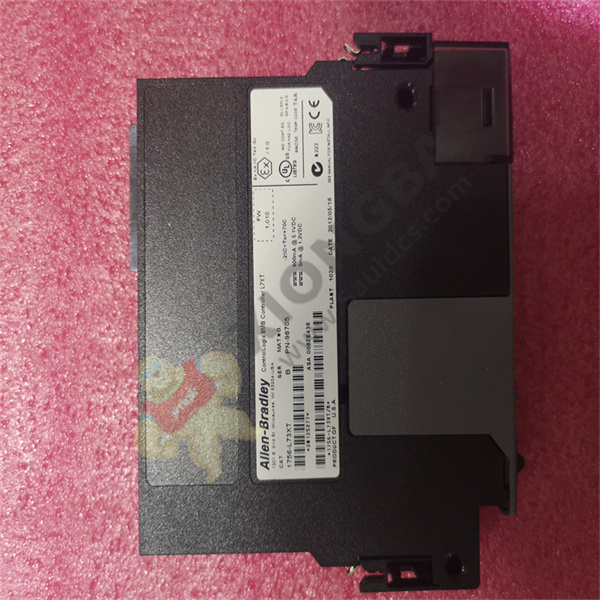

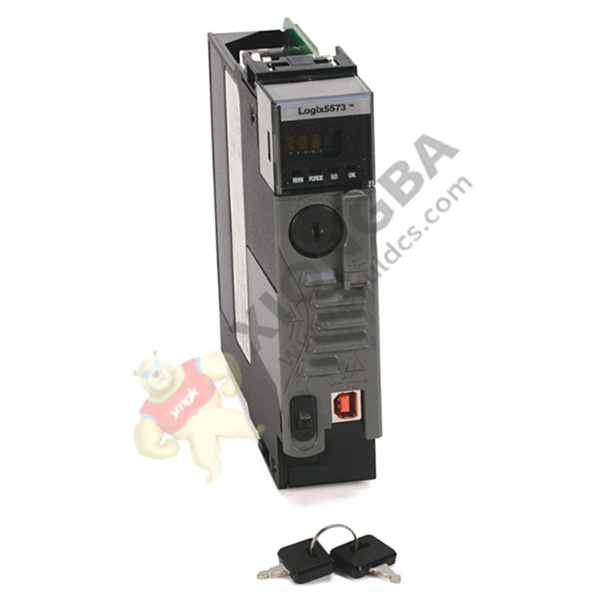

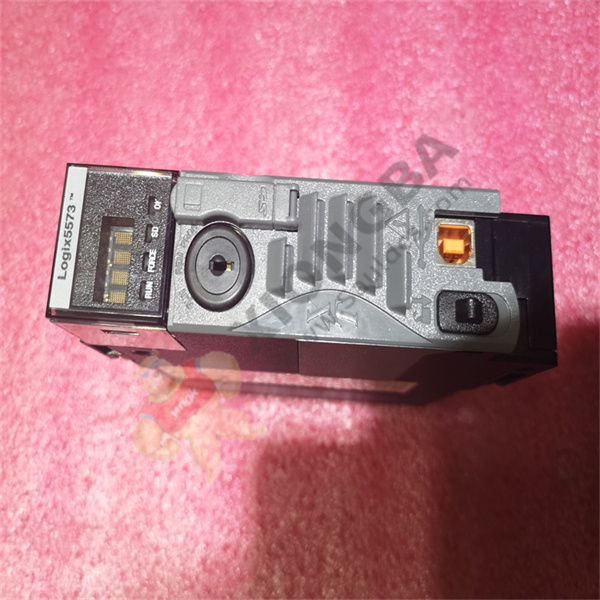

1756-L73XT Allen-Bradley Processor Module
Website：www.sauldcs.com
www.xiongbagk.cn
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
Xiamen Xiongba Electronic Commerce Co., Ltd. Zhangzhou Branch Main Scope
Products are used in: electric power, petroleum, mine, port, heating, gas, water supply, sewage treatment, metallurgy, paper making, textile, chemical industry, water conservancy and other modern industrial fields!
Purpose: To create excellent quality and excellent service.
Business philosophy: “Honesty and pragmatism” is our constant business philosophy.
Company goal: Our goal is to give you the same product, but the difference is the superior price and attentive service.
Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-L73XT |
| Series | ControlLogix |
| Module Type | Processor Module |
| I-O Memory | 0.98 MB |
| User Memory | 8 MB |
| Maximum I-O | 128,000 |
| Maximum Analog I-O | 4,000 |
| Maximum Digital I-O | 128,000 |
| Current Draw (1.2 Volts DC) | 5 milliamps |
| Current Draw (5.1 Volts) | 800 milliamps |
| Power Dissipation | 2.5 Watts |
| Thermal Dissipation | 8.5 BTU per hour |
| Isolation Voltage | 30 Volts Continuous |
| Enclosure | None |
| UPC | 10885630102129 |
1756-L73XT
1756-L73XT
1756-L73XT
1756-L73XT
1756-L73XT
The 1756-L73XT is a 1756 series ControlLogix processor unit manufactured by Allen Bradley. The controller offers scalable solution needed for addressing many I/O points. It can be placed into any slot of a ControlLogix I/O point and also install multiple controllers on the same chassis. This module comes with 0.98 MB Input / Output memory and an 8MB user memory. The 1756-L73XT functions similarly to other ControlLogix modules consisting of a control and communication system that is coated to protect against harsh and corrosive environments. Used with the FLEX I/O-XT, the 1756-L73XT has the ability to withstand temperatures ranging from -20 to 70 degrees Celsius. The 1756-L73XT has an irreplaceable battery that requires 800 Milliamps of current draw at 5.1 Volts AC. The maximum I-O Memory for the 1756-L73XT is 0.98 Megabytes while the Maximum Analog I-O is 4000. The maximum digital I-O for the 1756-L73XT has been rated as 128,000.
The Power dissipation for the 1756-L73XT is 2.5 Watts and also comes with thermal dissipation of 8.5 BTU per hour. It has an isolation voltage of 30 Volts Continuous providing basin insulation from USB port to backplane and has been tested and proven to withstand up to 500 Volts AC for up to 60 Seconds. It has a USB port that can reach up to 12 Megabytes per Second. It comes with full support for controller redundancy with various communication protocols. The communication options features EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus™, Remote I/O, SynchLink™ and other third party device networks. The 1756-L73XT comes with an optional nonvolatile memory of 1 GB and supports any module location. The operating temperature for the 1756-L73XT is -25 to 70 degrees Celsius while the storage temperature is -40 to 85 degrees Celsius. The relative humidity for the 1756-L73XT is 5 to 95% noncondensing.
