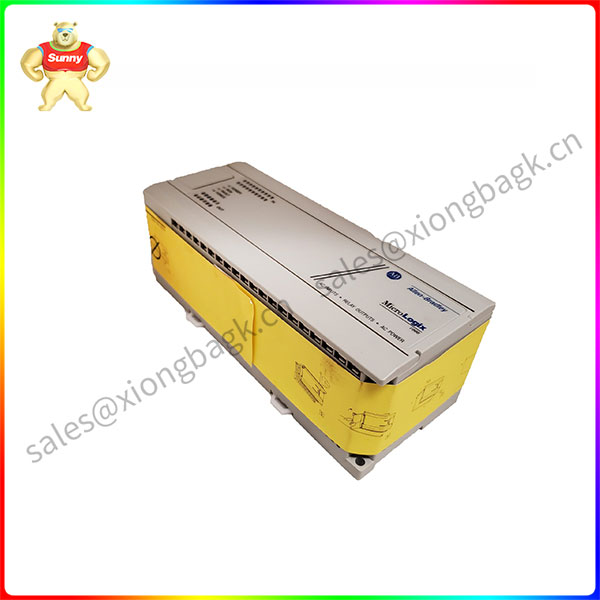

1761-L32AWA Allen-Bradley MicroLogix 1000 programmable controller

Description

Technical Description 1761-L32AWA：

Allen-Bradley 1761-L32AWA is a MicroLogix 1000 programmable controller. The controller features 1K user memory and integrates twenty (20) 120 volt AC input channels and twelve (12) relay output channels. The 1761-L32AWA can be operated on a power supply providing 120 VAC or 240 VAC. For safety purposes, the 1761-132AWA should be installed in A non-hazardous location or in Class 1, Zone 2 Groups A, B, C and D. If the connector is connected or disconnected while the circuit is still live or the 1761-32AWA is not installed in the housing, the controller may explode. The 1761-L32AWA is 7.87 inches in length, 2.87 inches in depth, and 3.15 inches in height. The controller can be mounted horizontally or vertically. When installed, leave at least 2 inches of space at the top, bottom and sides to allow free flow of air. It is compact and has a variety of communication options, including an RS-232 port for connecting to a point-to-point network via a DH-485 network. It also has a Device Network interface (DNI) for fast response, low cost, and reliable connectivity. The device allows for simple programming.
In addition, the 1761-432AWA can be installed vertically with the same mounting clearance as when installed horizontally. However, for vertical installation, the nameplate should face down. The optimum operating ambient temperature of the 1761-L32AWA ranges from 0 ° C to +40 ° C. When the controller is mounted on the panel, it has an operational impact rating of 9 g peak acceleration for 3 times in 11 milliseconds on each axis. When mounted on DIN rails, the 1761-L32AWA has 3 11 ms 7 g peak acceleration operating shocks in each direction. The 1761-L32AWA can accommodate solid wire in sizes from 14AWG to 22AWG. When the wire is twisted, the 1761-L32AWA can accommodate sizes from 16AWG to 22AWG. The execution time of the 1761-L32AWA controller is only 1.56 ms. The controller has AC, DC, or analog input options for current and voltage, and output options include relays, three-terminal bidirectional thyristor switches, MosFETs, and analog outputs. The 1761-L32AWA controller features a large instruction set for a variety of applications, including simple bits, timers, timing controllers, high-speed counters, and shift registers.
1761-.32awa is Allen-Bradley hardware that belongs to the MicroLogix 100O controller product line. The product family is a compact programmable logic controller (PLC) with an integrated power supply, communication port and I/O channel. It is well suited for industrial automation requirements. It can be used for machine and process automation in factory workshops or processing areas.
The controller has an integrated storage capacity of 1K EEPROM memory and is capable of holding up to 737 instructions and 437 data words. The controller also has twenty (20) discrete inputs operating at 120 volts AC and twelve (12) discrete outputs capable of reaching contact ratings of 24-125 volts DC and 120/240 volts AC. The controller is capable of discrete control, including basic logic operations, time-based operations, counter based operations and other bit logic operations.
In order to download the developed user program to the controller, connect communication cables such as 1761-Cpl-PMO2 Series C, 1761-Cpl-HMO2 Series C, 1761-Cpl-AMO0 series C and 1761-CBLAPO0 Series C. This communication cable connects to the controller’s 8-pin mini DIN port and the programming workstation’s 9-pin Sub-DCOM port. This same cable can be used to connect human machine interface (HMI) and supervisory control and Data acquisition (SCADA). Serial or point-to-point connections use the DF1 protocol, but can also be used with the DH485 protocol via 1761-NET-AIC.
