Description

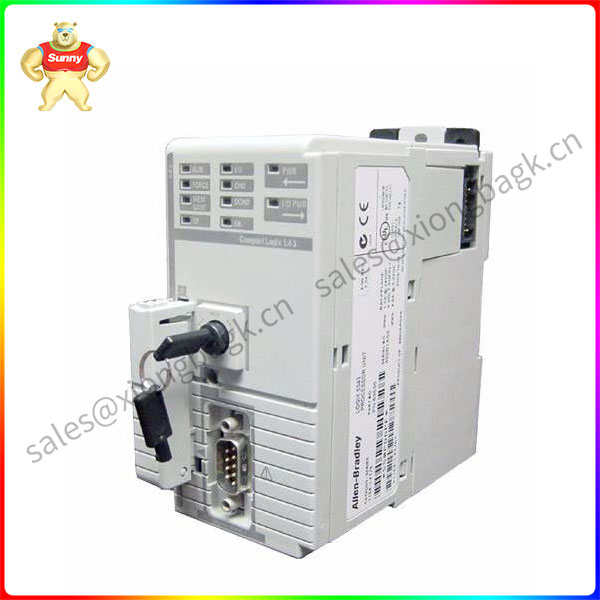

1768-L43 Allen-Bradley programmable logic controller
The Allen-Bradley 1768-43 compact logix controller is a programmable logic controller (PLC) for controlling machines and processes. The controller incorporates serial ports for connecting computers and other devices. It supports two 1768 backplane modules, providing 1.3 amps of backplane current at 24 volts. It has a backplane current of 2.0 amps at 5.2 volts. To manually change the operating mode, the controller provides key controls on the front panel for adjusting the controller mode.
The 1768-L43 has a maximum power consumption of 31.3 watts and a power consumption rate of 6.3 watts. It can support up to 16 1769I/O modules and 2 1768 modules residing in 2 remote /O groups. The 1768-L43 has an isolation voltage of 30 volts between RS 232 and the system and a test voltage of 500 volts AV. 1768-43 is designated as an aT4 temperature code (135 degrees Celsius) and is compatible with any open housing grade. With M4 or #8 mounting screws, it can be easily installed using (wall)/ panel mounting or DIN rails. The 1768-143 weighs 11.9 ounces and ships in 5.18×2.65×4.80 inches. The 1768-L43 has a non-condensing relative humidity of 5% to 95% and an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).
The 1768-L43 is a CompactLogix controller that is ideal for mid-sized applications. The controller provides Logix automation platform functionality in a compact and economical form. The controller supports motion application and is compatible with security controller.
The controller provides 2MB of memory allocation. The provided memory can be added with 1784-CF128 optional non-volatile memory. This memory is a compact flash memory that supports automatic loading of user programs that modularize the transfer of controller data to another compatible controller. It prevents erasure programs and prevents unnecessary data erasure.
It also comes with a fully isolated RS232 communication port that supports speeds up to 38.4Kbps. To connect to the controller, recommended cables include the 1756-CP3 or 1747-CP3, which is a right Angle connector for the controller that goes directly to the serial port and is 3 meters in length.
1768-43 Supports the installation of up to sixteen 1769 compact I/O modules in the local chassis. It supports extension options for up to two (2) /O libraries. The CompactLogix controller comes with status indicators such as PWR, IO PWR, RUN, FORCE, MEM save, IO, OK, CF, DCHO, and CHO.
The 1768-L43 supports DIN rail or mounting panel. Keep the top and bottom clearance at 105 mm or 4.13 inches, and the side clearance at 90 mm or 3.54 inches. These gaps ensure proper air circulation and ventilation to maintain an ambient operating temperature of O… 60 degrees Celsius (32 degrees Celsius… 140 degrees Fahrenheit).
