1769-L35E 1769 CompactLogix controller

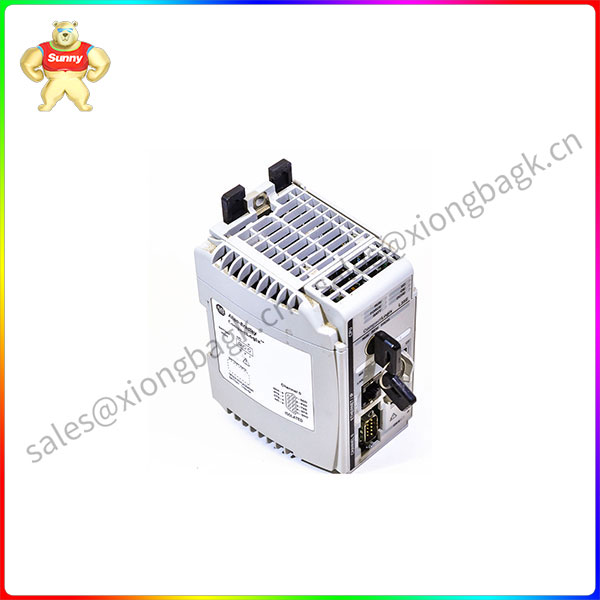

The Allen-Bradley 1769-L35E 1769 CompactLogix Controller is a Programmable Automation Controller

(PAC) ideal for medium sized control requirements, for process and factory automation industry. This

controller features an integrated One (1) RS232 and One (1) Ethernet communications port with integrated memory of 1.5MB memory.
This controller supports installation of Thirty (30) local expansion bank I/O. It also permits expansion of up

to Three (3) expansion banks with the use of Two (2) expansion cables.

For controller revision, 16. For revision 17. For 19.015, use 19.01.00 while for 20.013 use 20.01.00. Use

Studio 5000 Logix Designer if the controller revision is 21.00 and later.

1769-L35E

Ethernet may be configured thru RSNetworx for Ethernet, BOOTP-DHCP and the provide rotary switch.

Required communication is a standard Cat5 or Cat6 cable and supports up to 100 m of distance. It also

supports 10/100 mbps transfer rate with auto-negotiation function.
The 1769-L35E CompactLogix controller by Allen-Bradley provides sophisticated system control and a

communication domain and is compatible with various industrial machine systems. It is equipped with

Ethernet and an RS-232 serial communication port, with an operational memory of 1.5 Megabytes. The

1769-L35E is compatible with the 1784-CF64 compact flash non-volatile memory module, it can support

a maximum of 30 I/O modules, and it has an Allen-Bradley 1769-BA replaceable battery. The 1769-L35E

has an expansion capacity of up to 30 modules and a power supply rating of 4 modules. The 1769-L35E has

a draw current at 5 Volts DC of 660mA, a 5.5-Watt heat dissipation rate, 30 Volts of maximum insulation

voltage, and a 660 mA backplane current (at 5 Volts DC).Even though this is an end of life product, we

will continue selling the 1769-L35E even after it has gone obsolete.
