Description
Technical Specifications for 1771-IR
Typical AC Signal Delay (Off) | 45 (+/- 15) ms |
Typical DC Signal Delay (On) | 10 ms |
Wiring Arm | 1771-IR |
External Power Required | No |
Backplane Current | 800 Miliamperes |
Current Range | N/A |
Voltage Range | 100 Ohms platinum, 10 Ohms other |
Channel Update/Resolution | 50 ms/8 channel; 16 bits + sign (1.0 Celsius/1.0 Fahrenheit/bit) |
Data Format | Natural Binary, BDC Actual Temperature, or Ohm Readings |

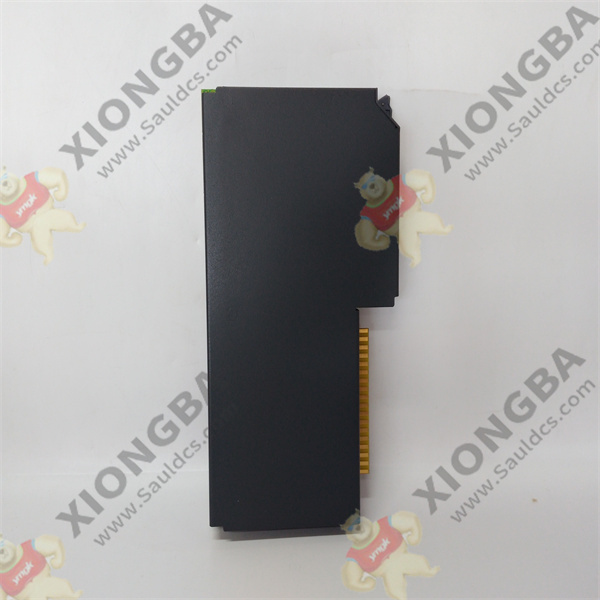

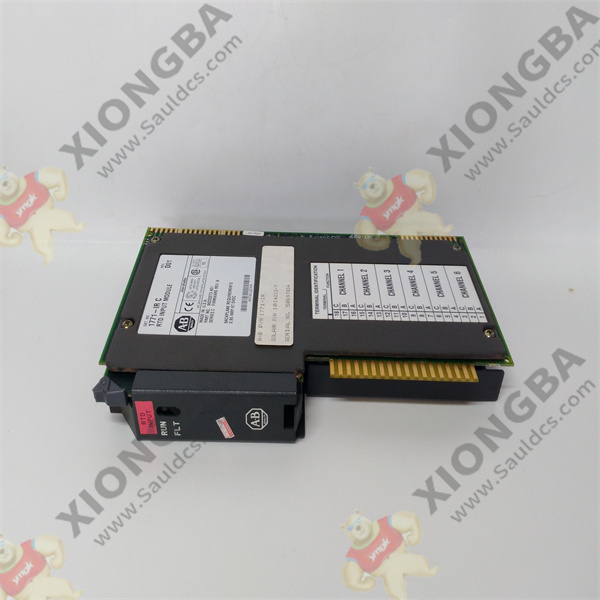

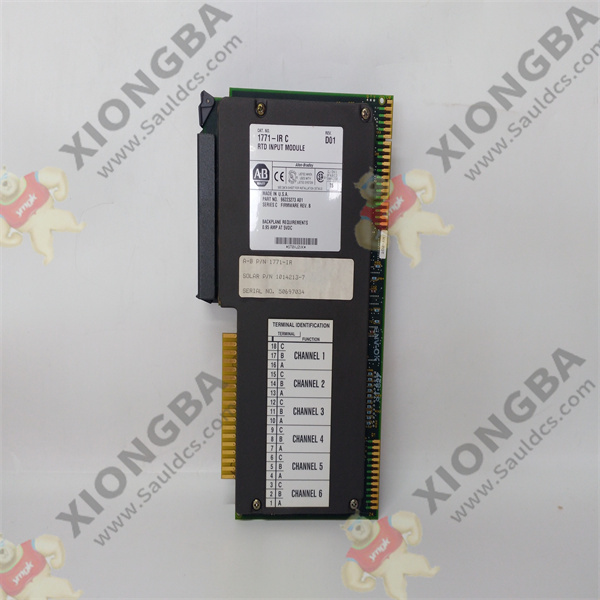

The Allen-Bradley 1771-IR is a PLC-5 RTD input that features a natural binary BDC-supported actual temperature and Ohm readings data format. This device does not require any kind of external power. It consists of 6 three-wire RTD Inputs.
The channel update resolution for this device brings in a combination of 50ms/6 channel and 16 bits +sign (1.0 Celsius /1.0Fahrenheit/bit). The voltage range for the 1771-IR input module is 100 Ohms platinum and 10 Ohms other. It has a backplane current range of 800mA.
The DC signal delay in On-state is 10ms and in the Off-state it is 50ms while the AC signal delay in On-state is 45(+/- 15) ms. These input modules have a life of up to 100 million operations because it meets the requirement for a voltage of 10-276V AC.
The 1771-IR also helps in the protection of your system by providing appropriate troubleshooting aids. The module indicators show smart input or output status to help you in troubleshooting your device. The 1771-IR features a smart mixture interface to On/OFF devices like switches, motor starters, pushbuttons, pilot lights, and annunciators. This unique feature helps in saving system engineering and spare parts and inventory and training costs as well. The front panel of each of the AC discrete input-output module consists of bright status indicators.
The 1771-IR supports Celsius and Fahrenheit units of measurement. It can be used in temperature measurement range of -200 to +870 Degree Celsius for Platinum sensor and -200 to +260 Degree Celsius for Copper sensor. It has a resistance range of 1.00 to 600.00 Ohms and resolution of 0.1 Degree Celsius or 0.1 Degree Fahrenheit when used with Platinum sensor and 0.3 Degree Celsius or 0.5 Degree Fahrenheit.
The 1771-IR draws Current from the backplane amounting to 950 mA at 5VDC with Power Dissipation of 4.75 Watts and Thermal Dissipation of 16.2 BTU/hr.
The 1771-IR features software configurable channels, with auto-calibration feature. It is capable of open wire detection. Captured values by the 1771-IR supports software instructions such as Block Transfer Write (BTW) and Block Transfer Read (BTR) instructions.
