1785-L40C Allen-Bradley processor module

Description

1785-L40C Allen-Bradley processor module

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

Xiamen Xiongba Electronic Commerce Co., Ltd. Zhangzhou Branch Main Scope

Products are used in: electric power, petroleum, mine, port, heating, gas, water supply, sewage treatment, metallurgy, paper making, textile, chemical industry, water conservancy and other modern industrial fields!

Purpose: To create excellent quality and excellent service.

Business philosophy: “Honesty and pragmatism” is our constant business philosophy.

Company goal: Our goal is to give you the same product, but the difference is the superior price and attentive service.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

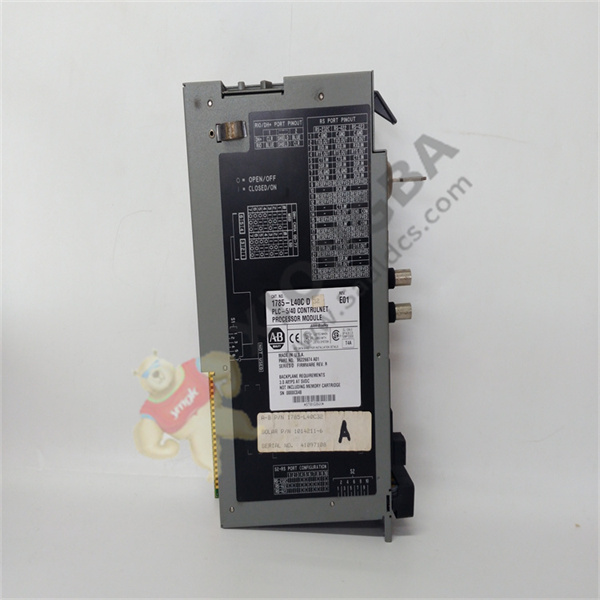

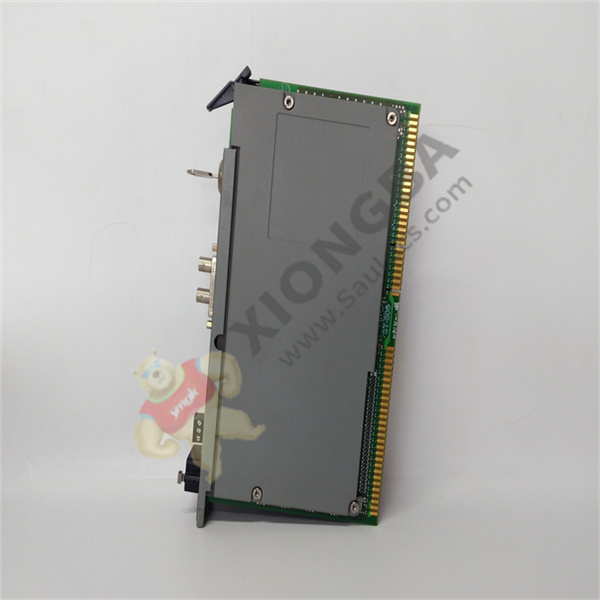

The 1785-L40C PLC-5/40C is an Allen-Bradley Controller with ControlNet Network Capability a 48-KB Word SRAM Processor and ControlNet capability installed on the I/O slot of the 1771 I/O Chassis, and it is used for controlling the outputs and inputs of field devices. The processor has 48KB of maximum user memory words, with a maximum I/O capacity of 2048 (with 2048 in and 2048 out complementary), and a maximum program scan time of 0.5ms per K-word measured in bit logic and the scan time is 2ms per K-word (typical). The controller draws 3.3A of backplane current at 5V DC, and its maximum heat dissipation is 59 BTU/hour when it is operational. The controller supports the 1785-CHBM ControlNet Hot Backup Cartridge, for use in a hot backup of the system, and it supports the 1771, 1794, 1746, and the 1791 8-point, 16-point, and 32-point modules, and the intelligent I/O modules. The controller has a base-configured RJ45 Connector ControlNet Network Access Port, with an I/O transmission rate of 5mb per second, and with a user selectable network update time of 2-100ms, and a Co-Processor port.

1785-L40C

1785-L40C

1785-L40C

1785-L40C

1785-L40C

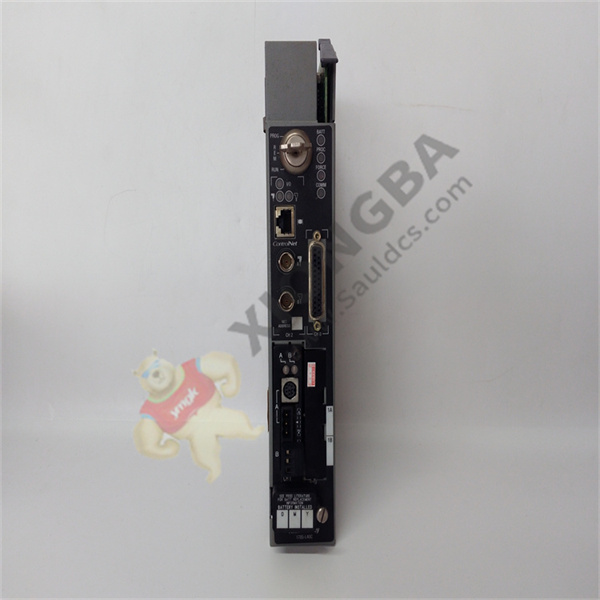

The 1785-L40C is a PLC-5 controller manufactured by Allen-Bradley. This controller has various ports which includes a 25-pin D Serial port which supports the EIA RS-232C and RS413 devices and it is RS-422A compatible. The controller has indicators to display the status of the controller systems. The BATT indicator indicates the battery status, and it turns red when the battery is low. The PROC indicator is green when running and red when there is a problem. The FORCE indicator is amber when the I/O forces are enabled and the COMM indicator is green when the channel is communicating on the COM port. Users can install the memory module and the battery in the controller module. The 1785-L40C draws a backplane current of 3.3 Amps at 5 Volts DC.

The maximum user memory is 48KB and it has a 48K word SRAM. The controller also has a mini 8-pin DIN connector for programming and a 3-pin default DH+ port. The controller is built to be operated at an ambient temperature of 0 to 60 degrees Celsius in a non-condensing humid environment having a humidity range between 5 and 95%. The 1785-L40C can withstand an operating shock of 30G and it weighs 1.42 Kg. The 1785-L40C has a program backup option using an EEPROM. The maximum total I/O for the 1785-L40C is 2048 which includes any mix of inputs and outputs. It also has a battery-backed static RAM. The 1785-L40C also has a RJ45 connector ControlNet Network Access port. The controller is UL, CE, CSA, and C-tick certified as per the regulations.
