Description
Product details:
Manufacturer | Rockwell Automation |
Product Family: | PanelView Standard Operator Terminals |
Status Indicators: | COMM: Green Fault: Red |
Enclosure: | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
Input Frequency: | 47…63 Hz |
Input Voltage range: | 85…264V AC |
Communication ports: | DeviceNet; RS232 (printer) |
Application memory: | 310KB application runtime; 1008 KB nonvolatile memory |
Keypad Assembly: | 16 function keys (F1…F16) |
Backlight: | 50,000 hr LED backlight life half-life |
Resolution: | 640 x 480 |
Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
Display Type: | Color Active matrix |

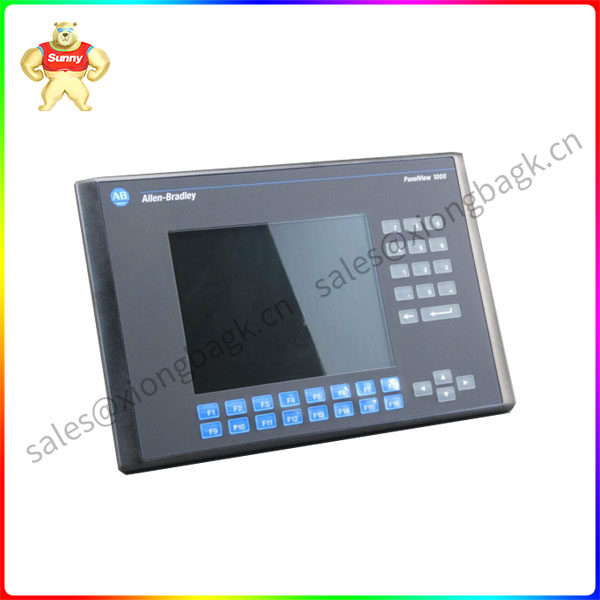

The Allen-Bradley 2711-K10C10 is a part of the old Allen-Bradley PanelView 1000 Graphics Terminal. It is used for various monitoring and machine control applications. The 2711-K10C10 terminal has a 10-inch keypad and color display with a navigation button. The terminal supports 32 standard colors and has a 640 x 480 resolution. It has dimensions of 11.11 x 16.64 x 4.40 in. and it weighs 8.2 lbs. It has a 1008 KB nonvolatile memory, a 310 KB RAM, and 85 – 264V AC input voltage. For communication, it has DeviceNet to upload or download applications.The 2711-K10C10 has a NEMA 12/13 or 4X enclosure and is intended for indoor use only. The 2711-K10C10 terminal has custom designed applications for easy use. It supports advanced alarm handling to store information and it is equipped with an RS-232 port for online printing. It also supports various universal languages. Other features include analog gauges, screen security, and a memory card support for better control. It has various ports for connecting to a scanner, PLC, SLC, or Logix controller.
The 2711-K10C10 is typically installed flush-mounted to an enclosure that offers adequate protection against industrial contaminants and hazardous environments. It is recommended to be installed in industrial enclosures rated NEMA Type 12, 13, 4X (indoor use only), IEC IP54, and IP65. This operator terminal has an operating temperature range of 0…55 °C (32…131 °F) and storage temperature of -25…70 °C (-13…158 °F). It must be installed horizontally on a flat surface with a vibration limited to 2 g up to 2000 Hertz and shock of 30 g.
