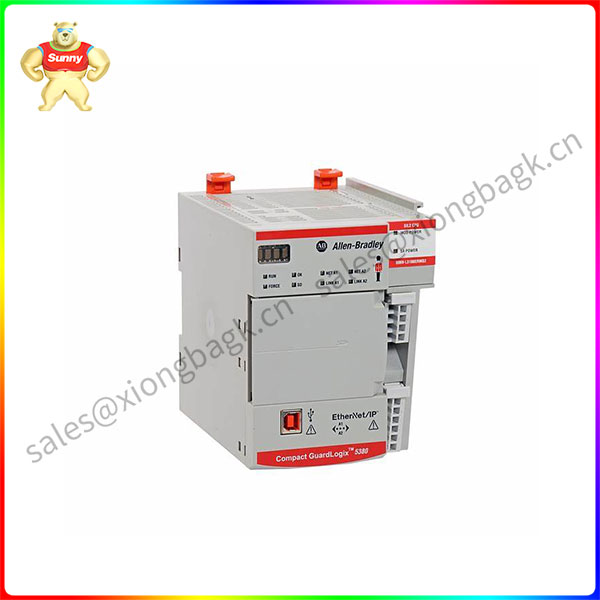

5069-L330ERMS CompactLogix 5380 Controller

The 5069-L330ERM is a CompactLogix 5380 controller. This controller mainly features integrated motion

over Ethernet I/P and capable of connecting with a variety of Ethernet topology such as linear, Star and

Device Level Ring (DLR). With Ethernet communication, this controller is capable of connecting plant-floor

data to supervisory and enterprise level without needing to install specialty devices.

The 5069-L330ERM’s compact design allows it to be installed on a DIN rail in horizontal orientation only.

Never use DIN rail made of poor or non-conductive material as the DIN rail provides grounding connection

as well. It is recommended to use zinc-plated, chromate steel Din rail or the EN50022 DIN rail which

measures 35 x 7.5 mm (1.38 x 0.30 in.). Removable Terminal Blocks (RTB) are also needed to allow

termination of MOD and SA power connection. Appropriate RTB kits are 5069-RTB64-SCREW and 5069-RTB64-SPRING.

This controller has an open type enclosure which means that it requires to be installed with a panel that

provides protection against entry of industrial contaminants such as grease, oil, water, corrosive gasses and other materials.

5069-L320ERS2

The 5069-L330ERM dual Ethernet I/P interface supports fast ethernet and gigabit ethernet speed, specifically,

10 /100 Mbps and 1 Gbps, respectively. In addition, up to 60 Ethernet nodes may be connected, 32 socket

connections may be established, maximum of 256 motion axes and 16 CIP drive axes. CIP drive connections

may be composed of any combination of f CIP Drive, Virtual, Consumed, Regenerative AC/DC

Converter and Non-Regenerative AC/DC Converter axis.

The embedded user memory of this controller amounts to 3 MB and ships with 2 GB user memory provided

by the 1784-SD2 Secure Digital (SD) card acting as the controller’s non-volatile memory.
