Description

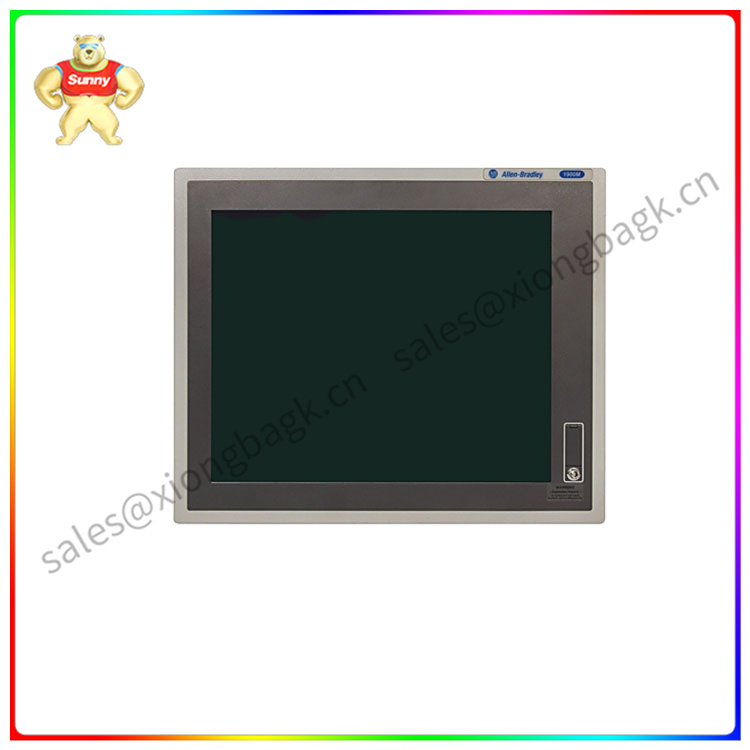

The 6176M-17PT is an industrial display monitor from Allen-Bradley. This monitor is used to provide a visualization with commercial-grade computers however, it is specially made compatible with non-display industrial computers from Allen-Bradley or 3rd party manufacturers. This monitor mainly features a 17-inch display screen with a resolution of 1280 x 1024 pixels and a display area of 338 x 270 mm (13.3 x 10.7 in.). It comes with a resistive touchscreen operator interface that allows users to control the connected machine or process through touch inputs. The 6176M-17PT is available in Series A, B, and C versions. With Series A and B monitors, the 6176M-17PT uses the PANJIT driver while the series C monitor uses the eGalax_eMPIA Technology Inc (EETI) device, driver. The 6176M-17PT industrial monitor is also provided with a variety of video outputs such as One (1) DVI and One (1) VGA port. It also has One (1) RS232 port, One (1) USB 1.0, and One (1) USB 2.0 peripheral interface for attachment of keyboard, mouse, printer, removable flash drive for flexibility. This monitor support panel mounting or VESA mounting. To operate this monitor, it must be connected to an external power supply that provides 90-264 VAC, 47-63 Hz frequency.
6176M-17PT
The Allen-Bradley 6176M-17PT monitor is a standard 1750M series industrial monitor. It is a panel-mounted monitor which is directly installed into a panel with mounting clips. The number of mounting clips on the 6176M-17PT monitor is 10. The display is certified by the CE, China RoHS, and European RoHS standards. The display technology used for the 6176M-17PT monitor is color active-matrix TFT LCD. The screen supports a resistive antiglare touchscreen. The touchscreen controller for Series A and B displays is a Panjit controller and for Series C displays, it is an EETI controller. The diagonal display size is 18 inches and the display area is approximately 13.3 x 10.7 inches. The typical display luminance is 300 Nits. The typical contrast ratio is 800:1. The rising response time is 6 milliseconds and the falling response time is 3 milliseconds. The display backlight is rated at 50,000 hours.
The weight of the 6176M-17PT monitor is 12.54 pounds and its dimensions are 14 x 17.8 x 2.1 inches. The display can be used with both AC and DC power. However, a 12 Volts power adapter is required for DC input. The range of AC input voltage in the 6176M-17PT monitor is from 90 to 264 Volts AC. The power consumption rating is 36 Watts (3 Amps). The enclosure of the display is a NEMA type 4, 12 IEC IP 66 enclosure. The operating temperature range is from 0 to 45 degrees Celsius. The storage temperature range is from –20 to 60 degrees Celsius. The operating and non-operating shock ratings are 15 G and 20 G, respectively, for 11 milliseconds. The operating and non-operating vibration ratings are 0.015 inches (1 G peak) and 0.015 inches (2 G peak).
