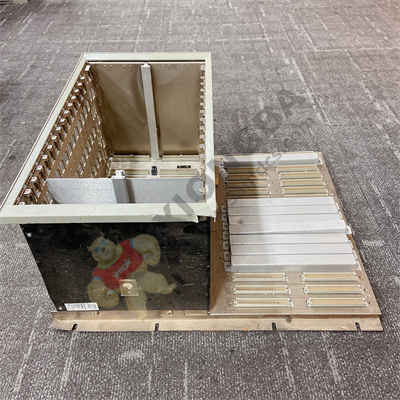

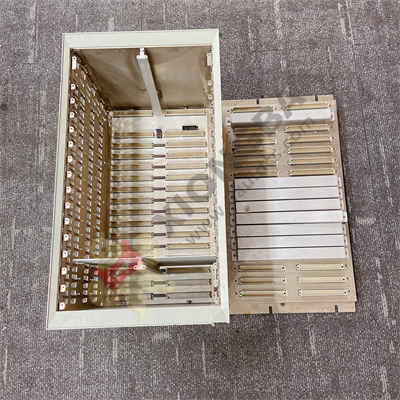

3500/05-01-03-00-00-00 3500 System rack

3500/05-01-03-00-00-00(rack) Function and format

• Panel mounting: This rack format is attached to the rectangular cutout of the panel and is secured to the panel with
• clips that come with the rack. The I/O module and wiring connections can be operated from the back of the rack.
• The 3500 frame is mounted on a 19 “EIA rail using this frame format. The I/O module and wiring connections can be operated from the back of the rack.
• This rack format mounts the rack on a wall or panel when the back of the rack cannot be reached. The I/O module
• and wiring connections can be reached from the front of the rack. This format does not work with 3500/05 microracks.
• The leftmost rack position must accommodate power supplies and rack interface modules. Any combination of modules
• can be used for the remaining 14 rack positions (including those of the mini-seven rack).

2. Components of the chip

The core of the power supply is IC, which is like the brain of the power supply. The quality of IC directly affects the parameters of the power supply.

3. Transformer components

The transformer determines the power and temperature resistance of the power supply. The transformer is responsible for AC – DC, energy overload will saturate the machine
