Description

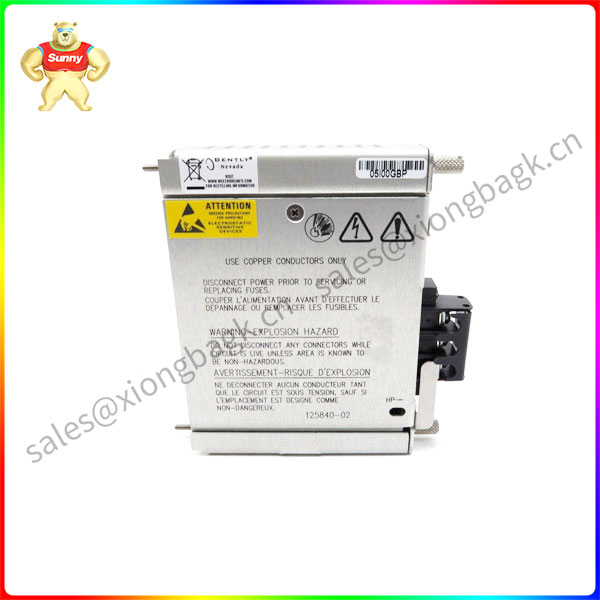

3500/15 125840-02 low voltage AC power input module (PIM)
Product Description
3500/15 125840-02 Product Description
I. Product overview
The 3500/15 125840-02 is a key component in Bently Nevada’s 3500 series, specifically a low voltage AC power input module (PIM). It is designed for applications that require high system reliability, such as vibration monitoring and protection of large machinery.
2. Technical specifications
Power type: The module is designed as a low-voltage AC power input module and supports the corresponding voltage range.
Compatibility: As part of the 3500 series, the module is compatible with Bently Nevada’s 3500 systems, ensuring seamless integration and efficient operation.
Redundancy design: In applications requiring high reliability, the 3500 rack supports triple modular redundancy (TMR) configurations. When using a TMR configuration, the 125840-02 module (or other corresponding PIM) must be installed in three adjacent slots to monitor the same machine point.
Three, functional characteristics
Multi-channel support: Although the exact number of channels is not mentioned in the reference article, considering that it is part of the 3500 series, it is likely to support multiple channels to meet the needs of different applications.
Communication interface: This module may support communication with other 3500 series components for data exchange and system monitoring.
Easy configuration: Like the other components of the 3500 system, the 125840-02 module may be configured and managed via Bently Nevada’s proprietary software, which simplifies the setup and modification process.
125840-02
Product parameter
The parameters of 3500/15 125840-02 are as follows:
Product Type:
Low Voltage AC Power Input Module (PIM)
Compatibility:
Compatible with Bently Nevada’s 3500 system
Power supply characteristics:
Designed for low voltage AC power input
When using a triple modular redundancy (TMR) configuration, three modules need to be installed in adjacent slots to monitor the same machine point
Communication interface:
Supports communication with other 3500 series components
Configuration and management:
Configuration and management via Bently Nevada’s proprietary software
Other features:
Baud rate support range: from 600 to 4800bps
Power consumption: Less than 1W in active mode
Compatibility: RS-485 interface can be optionally supported
Application field
Industrial Automation: In industrial automation applications that require continuous monitoring and protection of critical equipment, the 125840-02 module provides the necessary power input capabilities.
Energy industry: This module plays an important role in the energy industry such as oil, gas, electricity, especially in applications involving large rotating machinery such as turbines, generators, etc.
Other fields: In chemical, steel, manufacturing and other fields, where high-precision and high-reliability vibration monitoring and protection systems are needed, the 3500/15 125840-02 module may also be used.
