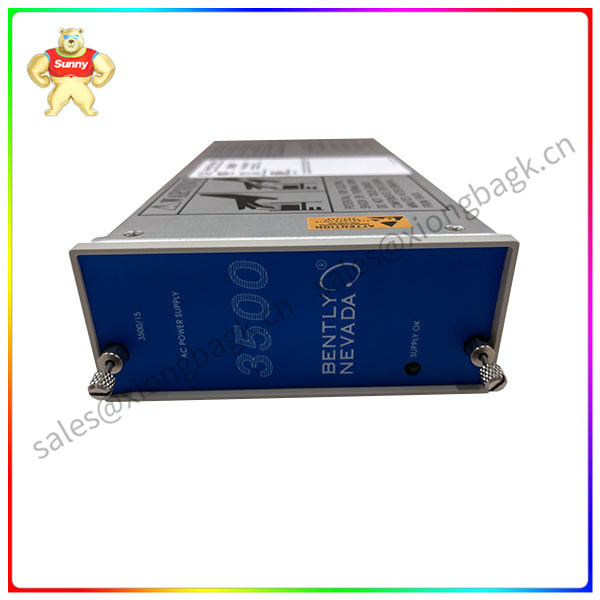

3500/15 Power module Bently Nevada

the switch is turned off. The grounding system is led to the terminal connector through the END, if the system is grounded in another place, such as with an external security device, the switch needs to be turned to (OPENED).

Add to quote
Category:

Description

Input power options:
175 to 264 Vac rms: (247 to 373 Vac, pk), 47 to 63 Hz. This option uses AC power and is a high voltage (usually 220V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 175 to 250 Vac rms.
85 to 132 Vac rms: (120 to 188 Vac, pk), 47 to 63 Hz. This option uses AC power and is low voltage (on
Normal 110V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 85 to 125 Vac rms.
88 to 140 Vdc: This option uses DC power and is a high voltage DC power input module (PIM).
20 to 30 Vdc: This option is low voltage DC power supply and is a Low Voltage DC power supply module (PIM).
2, over-limit protection: For all power supply types, low voltage will not damage the power supply or PIM. An out-of-range voltage will open the fuse on the PIM.
Full frame current value:

3500/15

175 to 254Vac input: 2.3 A rms (large).
85 to 132 Vac inputs: 4.5 A rms (large).
88 to 140 Vdc Input: 2.5A (large).
20 to 30 Vdc input: 10.0A (large).
3, output: front panel LED
Power OK LED: When the power supply is working normally, the light is on.
Single point grounding wire connection: To avoid grounding loops, the system must provide a single point of grounding, and the power input module provides you with a switch to distinguish where the control system is grounded. If two power supplies are installed, then both switches need to be adjusted to the same position. When the power input module is delivered, the switch is turned off. The grounding system is led to the terminal connector through the END, if the system is grounded in another place, such as with an external security device, the switch needs to be turned to (OPENED).
