3500/53 Overspeed detection module
The electronic overspeed detection system of Bentley Nevada’s 3500 Series Mechanical Inspection System is highly reliable and responsive
Redundant tachometer system for overspeed protection of machinery. 3500/53 modules can be used to compose 2 Option 2 or 3 Option 2(recommended)
The voting system. The 3500 frame with the overspeed detection system requires a redundant power supply.
Each overspeed detection module receives a eddy current sensor or magnetic sensor signal, the input signal range is +
10.0V to -24.0V. Signals outside this range are limited within the module. For Bentley Nevada 3300 8mm vortex
Sensor, 3300 16mm High temperature Eddy current sensor (HTPS), 7200 5mm, 8mm, 11mm and 14mm eddy current transmission
3500/53
Sensor, 3300 RAM eddy current sensor, or magnetic sensor.
Front panel LED (Light Emitting Diode) Meaning: indicates that the 3500/53 module is working properly
TX/RX (Transmit/Receive) LED: indicates that the 3500/53 module is communicating with other modules in the 3500 frame
Bypass LED: Indicates that the 3500/53 module is in bypass state
Test Mode LED: Indicates that the 3500/53 module is in the test state
Alarm LED: Indicates that an alarm condition has occurred and that the relay associated with it has activated the sensor buffer
Output: Each module has a coaxial connector at the front for buffering the output, and each connector has a short circuit and electrostatic protection
For the speed, you can set it below or above the alarm level (setting point). In addition, the speed can be set danger (overspeed)
Set the point. All alarm setting points are set by software configuration. The alarm point is adjustable and is usually at 0-100% full scale
Circumference adjustment.
Alarm time delay: less than 30ms at frequencies above 300 Hz.

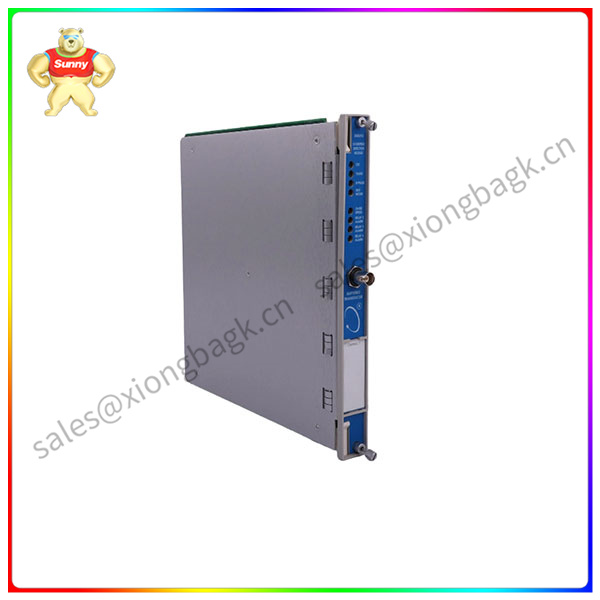

1) Main module, front view
2) Status LED
3) Buffer sensor output, sensor
Provides an unfiltered output with a short circuit
Protection
4) I/O module, rear view
According to 3500/53 overspeed detection module front panel
