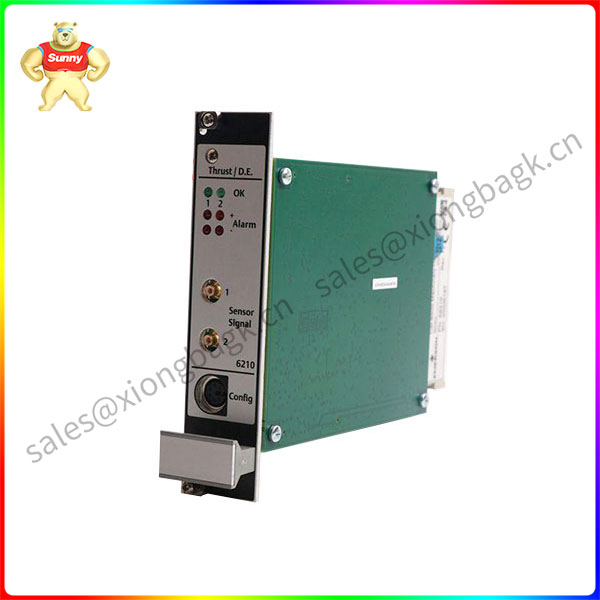

9199-00003 A6210 EMERSON Monitoring module

$12,500.00

A6210 Configuration of the transmitter for the desired signal output type(vibration or position)The measuring range is set by jumper.
In order to achieve higher measurement accuracy, adjust the CSI 9360 in the transmitter toSensor type and cable length (5 with 6422m or 9m cable or 5 with 6423m or 9m
cable).Together, the A6210 transmitter and sensor form the measurement chain. ChangeTransmitter type and/or sensor cable length need to be recalibrated to keep
Accuracy.

Add to quote
Category:

Description

Rod position monitor for the AMS 6500 mechanical health monitor

The A6210 monitor operates in three different modes: thrust position, differential expansion or rod position.

The thrust position mode accurately monitors the thrust position and reliably provides mechanical

protection by comparing the measured axial axis position with the alarm setting point (drive alarm and relay output).

Shaft thrust monitoring is one of the most important measurement methods of turbomachinery.

Sudden and small axial movement should be detected in 40 milliseconds or less to minimize the two-channel, 3U size, single-slot plug –

Or avoid contact between rotor and shell. Redundant sensors and voting logic are recommended.

The thrust bearing temperature measurement is strongly recommended as a supplement to thrust position monitoring.

Shaft thrust monitoring consists of one to three displacement sensors mounted in the axial direction parallel to the shaft at the end of the shaft or the thrust ring. displacement

The sensor is a non-contact sensor that measures the position of the shaft.

For safety-critical applications, the A6250 monitor provides triple redundant thrust protection on the SIL Stage 3 overdrive system platform.

The A6210 monitor can also be configured for differential expansion measurement. Due to the change in thermal conditions of the turbine, the shell and rotor are growing

When started, differential expansion provides a measurement of the relative difference

between the displacement sensor mounted on the housing and the sensor target on the shaft.

If the housing and shaft grow at roughly the same rate, the differential expansion occurs

Keep the expected value close to zero. Expansion measurement modes support series/complementary or cone/slope modes.

Finally, the A6210 monitor can be configured to average rod drop mode – for

Monitor sliding strip wear of reciprocating compressors. Over time, rider belts wear out

In horizontal reciprocating compressors, due to the action of gravity

Horizontal oriented piston in compressor cylinder. If the belt wears out beyond specification,

the piston may contact the cylinder wall, causing damage to the machine and possible failure.

By installing at least one displacement probe to measure the piston rod position, you will be notified when the piston drops,

which indicates wear on the ride belt. You can then set the shutdown protection threshold for automatic tripping.

The average bar drop parameter can be used as a coefficient to represent actual rider wear, or nothing can be taken into account

When applied, the rod drop will represent the actual movement of the piston rod.

The AMS 6500 can be easily integrated into DeltaV and Ovation process automation systems,

including pre-configured DeltaV Graphic Dynamo and OvationGraphic

Macro to speed up operator graphics development. AMS software provides maintenance

Staff advanced prediction and performance diagnostic tools

Identify machine faults as early and accurately as possible.
