Description

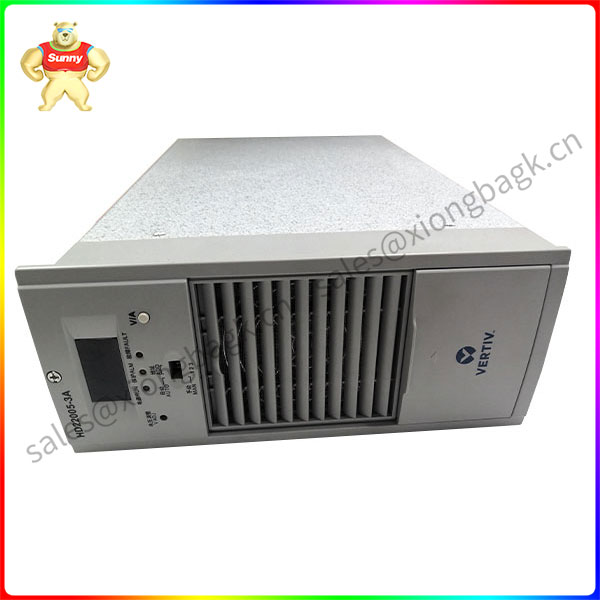

HD22005-3 EMERSON Charging module
The principle, appearance size, installation, maintenance and use of this series module is exactly the same as that of HD22010-3 series. It adopts forced air cooling mode. For relevant information, please refer to the introduction in the earlier part of this section. The product range is shown in the following table.
Table 1-1 Order information
Name Model Code Unit Ordering Guide Remarks
Charge module HD22005-3A 2130560 PCS Number of natural cooling/air cooling and dust proof design Number of natural cooling/air cooling and dust proof design
Technical specifications HD22005-3
Input characteristics
Input voltage 323V ~ 475V (three-phase three-wire system)
Input current ≤4A
The AC input frequency is 45Hz to 65Hz
Efficiency ≥90%
Input power factor ≥0.94
Output characteristics
The output voltage ranges from 176V to 320V
Rated output current 5A
Maximum output current 5.5A
The soft startup takes 3 to 8 seconds
Output constant current range 10%-110%
Steady flow accuracy (20% current limit) ≤±1%
Ripple coefficient ≤0.1%
The pressure stabilization accuracy is ≤±0.5%
Average current imbalance ≤±5% (50% ~ 100% rated load)
Sound noise <55dB
Protection feature
Output short-circuit recoil The recoil current ≤40% of the rated current can be self-recovery
Output overvoltage protection 325±5Vdc
Input overvoltage protection point 482±6Vac
Recovery point 460±15Vac
Protection point 316±6Vac
Recovery point 335±10Vac
Protection feature Phase loss protection can be restored
Overtemperature protection point 85℃
Recovery point 75 ° C
Fan temperature control The fan starts at 55 ° C and stops at 38 ° C
Safety insulation resistance test voltage 1000Vdc, input, output to the housing between the insulation resistance and input to output between the insulation resistance >10MΩ
Insulation strength After the input and output terminals are short-connected, an AC voltage of 50Hz with an effective value of 2000V is applied between the input/output terminal and the enclosure for 1 minute without breakdown or flaring
EMC Electrostatic discharge immunity requirements IEC6100-4-2 Level 3
Fast transient electrical pulse group immunity requirements IEC61000-4-4 Level 3
Surge immunity requirements IEC61000-4-5 Level 3
Transmission disturbance immunity caused by RF field induction requirements IEC61000-4-6 Level 3
Power frequency magnetic field disturbance resistance requirements IEC61000-4-8 Leve 3
Voltage sag, Short interruption and voltage gradient immunity requirements IEC61000-4-11 Sag and interruption: 0 ~ 70%U
Environment Parameters
Operating temperature -10℃ ~ 40℃
Storage temperature -25℃ ~ 55℃
Relative humidity ≤95%
Atmospheric pressure 70 ~ 106kPa
Mechanical parameters
Dimensions (L x W x H) 413mm x 110mm x 257mm
Weight 6kg
Cooling mode Air cooling, dust proof design
