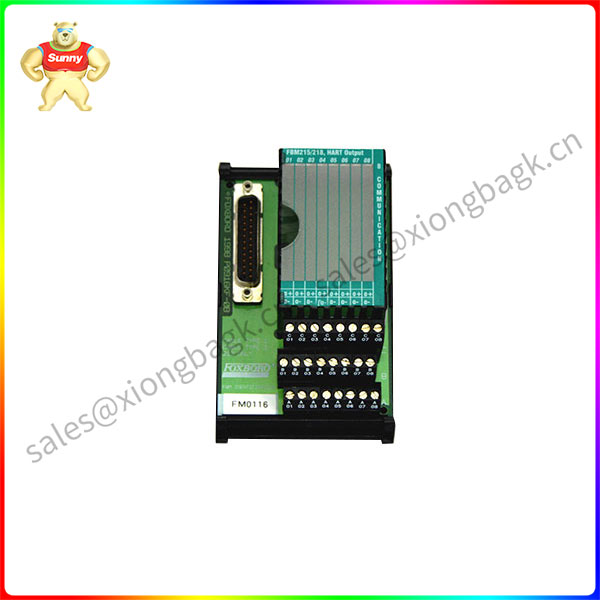

P0917XV FOXBORO Compression end assembly

Description

P0917XV FOXBORO Compression end assembly

In the engineering, it is the interface reserved for the station front project for the station rear project, is the embedded facility of the station rear interface project.
Double wiring terminal

The terminal section detection microscope can produce the upright three-dimensional space image when observing the object, the three-dimensional sense is strong, the imaging is clear and broad, with a long working distance; Equipped with high precision wire harness terminal image measurement and analysis system, combined into a wire harness terminal detection microscope, the perfect combination of high-quality optical system and high resolution camera, so that the section image is clearer, unique timing and positioning to make the measurement more accurate.

Professional testing equipment is required to check the terminal pressure.
Common terminal detection devices include: Terminal Cross section analyzer (MQ-200E)
1. The drawing of the wiring table of the wiring terminal wiring diagram shall comply with the regulations of the Drawing of the Function Table of the Control System in GB6988.6-1993;
Terminal of wiring
2. All terminals and their leads shall be marked with text symbols and wiring numbers consistent with those in the electrical schematic diagram. The preparation of project code, terminal number and wire number in the schematic diagram shall comply with GB5094-1985 “Project Code in Electrical Technology”, GB4026-1992 “General Rules for Identification and Application of Alphanumeric System for Wiring Terminals of Electrical Equipment and Wire Ends of Specific Conductors” and GB4884-1985 “Marking of Insulated Conductors”, etc.
3. Different from the electrical schematic diagram, all parts (contacts, coils, etc.) of the same wiring terminal must be drawn together in the wiring terminal wiring diagram;
4. The wiring diagram of the terminal shall be drawn with fine lines. There are two kinds of wiring mode: front wiring and back wiring. Generally, front wiring is used. For simple electrical control parts, the number of wiring terminals is small, and the wiring relationship is not complicated, the wiring between components can be directly drawn; For complex parts, the number of wiring terminals, wiring is more complex, generally is the use of cable trough, as long as the wiring number is marked on each terminal, do not need to draw the connection between the components;
5. The type, specification, cross-sectional area and color requirements of various wires used for wiring should be marked on the wiring terminal wiring diagram;
6. When the parts are connected with the external circuit, connectors should be used to connect the inlet and outlet lines of large section conductors, and the others should be connected through the wiring terminal block.
