T2550L80F32ELINSERIAL FOXBORO unit controller

T2550L80F32ELINSERIAL

T2550L80F32ELINSERIAL

T2550L80F32ELINSERIAL

T2550L80F32ELINSERIAL

T2550 unit controller features

Intelligent Modular I/O-T2550 rack assembly of new processor modules

Optional redundant configurations (redundant hot spare, single duplication, dual CPU* applications)

Support * network-elin (100Mbps), peer to peer communication

Supports integrated and decentralized databases

The data collection database is automatically created

It also supports continuous control and logical/sequential control

Online replacement of modules (hot swap)

Enhanced switching I/O module – new DI8/DO8

10ms * scan

* IEC 61131 configuration/programming – ladder diagram, graphical function block, sequential function diagram, structured text

LINtools/WinPS configuration is used

A single configuration environment supports user task assignment

Multilingual support for I/O modules and application strategies

Fully integrated operator station

* In accordance with IEC61131, while maintaining the operation of the * function

Consistent, exportable bit number application

I/O configuration in line configuration/separation

In LINtools, I/O configuration is automatically generated when * hardware module

● T2550 rack unit

A rack with 16 I/O slots supports redundant configuration of processor modules

New base plate compatible with current 2500 modules

Master/slave processor modules are tracked separately

Support redundant communication, online replacement, plug and play

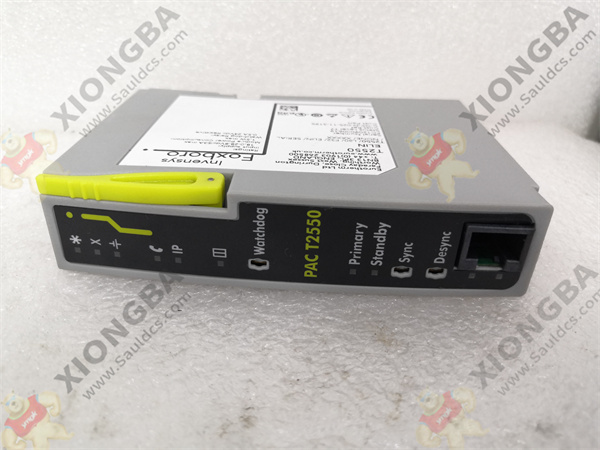

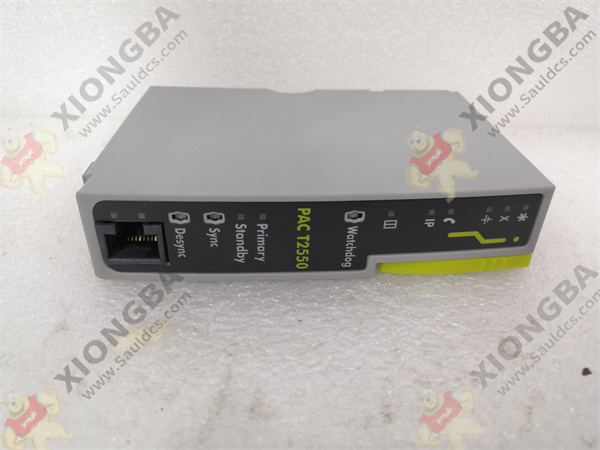

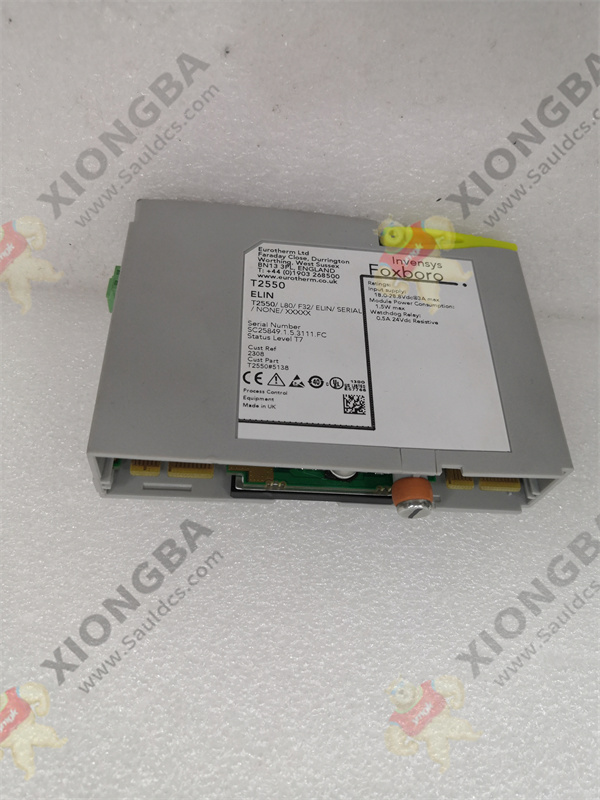

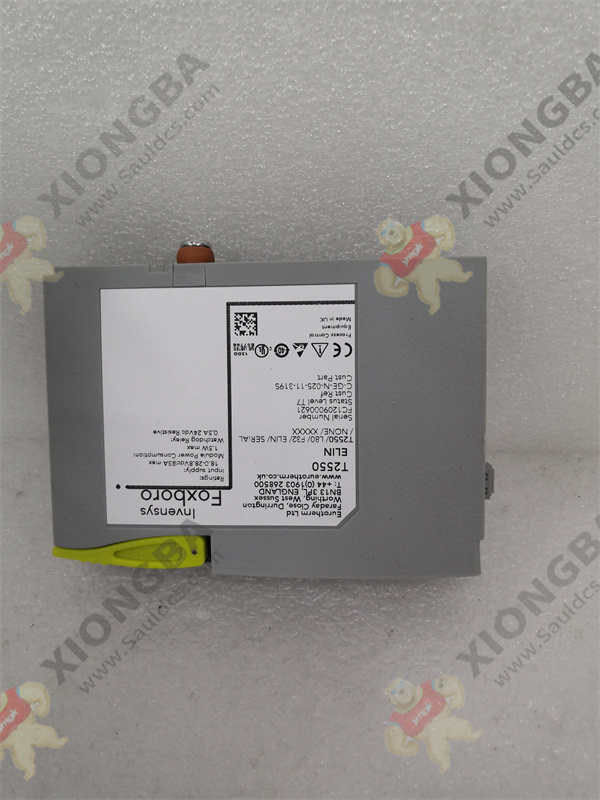

● T2550 processor module

European FOXBORO is IOC- based on mature TMC design

Supports redundant configuration and single-duplication applications

Built-in real-time clock

Each processor has a 10/100 mbpselin control network interface

A removable Flash memory card

Added LED status indicator and running mode switch

Internal communication bus between primary/secondary processor modules uses own protocol, * illegal access

Database Protection – protects users’ intellectual property rights
