Description
Manufacturer GE General Electric
Series Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000
Part Number DS200DCFBG1B
Product Type Power Supply Board
Instruction Manual GEI-100028
Warranty 3 Year Warranty
Weight 1lbs 3 oz
Shipping Dimensions 20 inches by 16 inches by 16 inches
Country of Origin USA

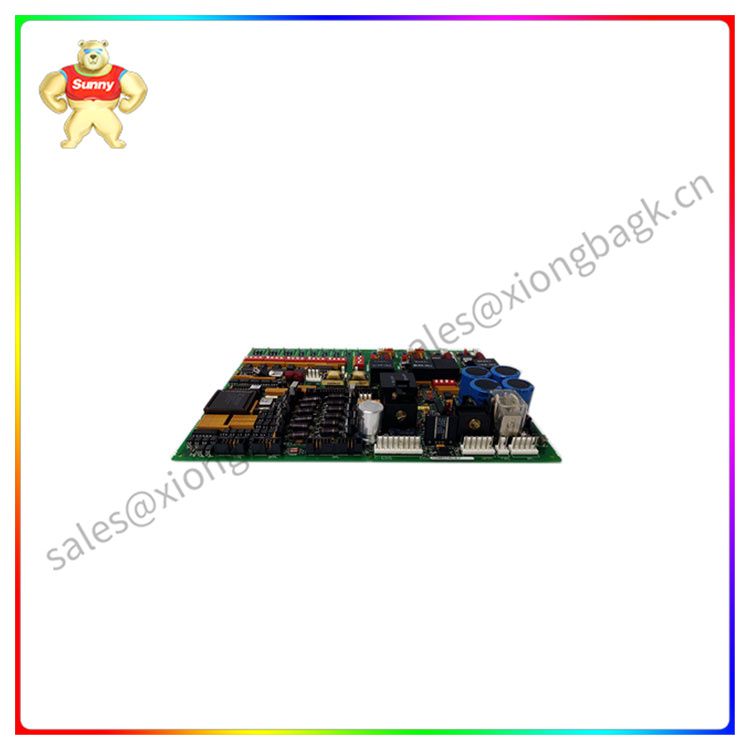

DS200DCFBG1B is a power supply board manufactured by General Electric for the Mark V board series
. AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000 series machines can have the board installed in
the drive. When installed, this card can provide both control level power and enclosure fan power to the drive.
Voltages rated between 38 and 115 VAC can be directly supplied to the board via the control power transformer.
Frequencies for the board are dependent upon the input voltage, but can range from 0 to 500 kHz.
The board features a number of circuits that work to power the board and the installed drive. DS200DCFBG1B is
comprised of motor field power, driver, AC/DC monitoring, and control level supply circuits. The twelve jumpers and
seven DIP switches found on the board provide users with configurable system options. Fuse switch diagnostics are
presented using the two LED and one neon indicator lights found on the board. Three protective fuses prevent any interruptions
in power supplies. Voltages can be monitored using the five test points integrated on the board.
Manufacturer provided installation and storage parameters for both the DS200DCFBG1B and the installed drive should be followed.
These will prevent any accidental or preventable damages to both units. For a complete guide to wiring and installing the board,
please reference the device’s manual and datasheet. Originally, technical support for this board and the Mark V series was
provided by the manufacturer, General Electric.
