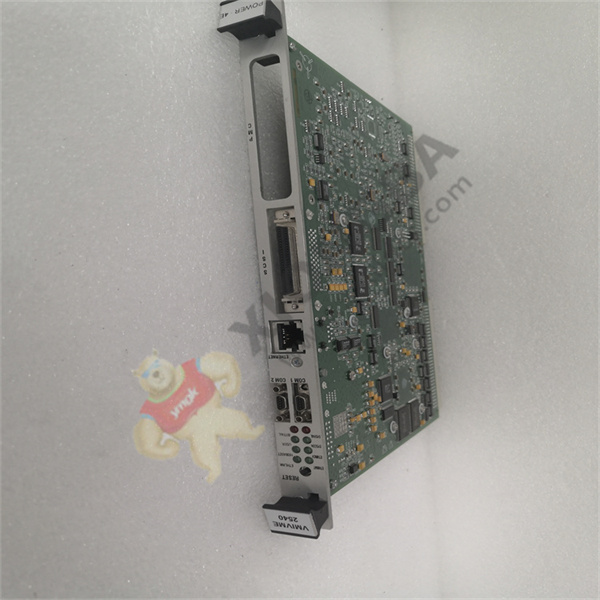

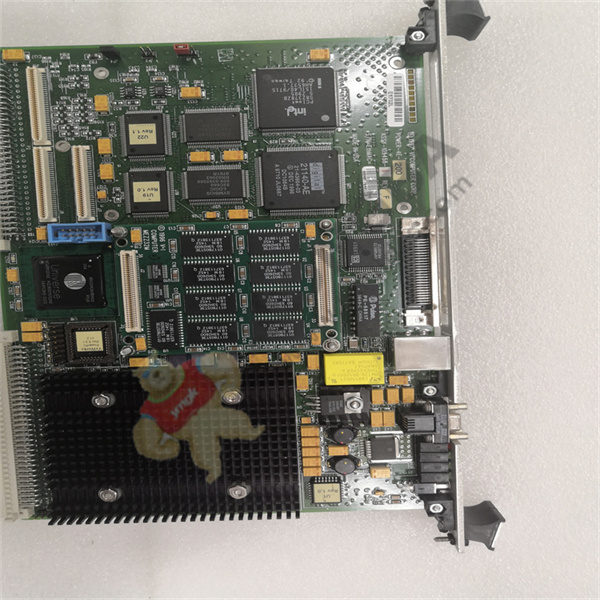

VMIVME-2540 GE 24-Channel Intelligent Counter/Controller

Description

VMIVME-2540 GE 24-Channel Intelligent Counter/Controller

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

• Event counting – up to 4 giga events
• Frequency measurement —1.16 x 10-3 Hz to 2.5 MHz
• Period/pulse-width measurement—400 ns to 8.5899 x 106 s (32-bit floating
point), 400 ns to 858 s (32-bit unsigned integer)
• Square wave/pulse train generation – 0.0076 Hz to 2.5 MHz
• Timer/periodic VMEbus interrupter – 0.0076 to 1,000 Hz
• Quadrature position measurement – sin/cos up to 1 MHz, 32-bit counters,
limit/modulo checking
• Integer period/pulse-width measurement 16- and 32-bit, discrete or
continuous; low data transport lags
• Programmed output – up to 24 discrete outputs
• Pulse sequence mode – train of N pulses with programmable duty cycle
• Quadrature position control outputs – ±1/4 wave control resolution; up to
1.25 MHz step rate and ±32767 steps per command
• Integer QPM group acquisition – captures two integer QPM measurements
simultaneously
• Event-triggered timer delay – generates VMEbus interrupt up to 131.1
seconds after event edge input; retriggerable
• 24 control/measurement interfaces: 24 clocks, 24 gates, 24 outputs
• RS-422 differential interface with support for single-ended TTL inputs
• Options allow configurations of 4, 8, 16, and 24 interfaces
• On-board 15 MHz 68HC000 CPU
• A32/A24/D32/D16/D8 (EO) VME slave interface, 64 Kbyte VMEbus
memory window
• Data exchange interface: ANSI/IEEE standard 754-1985 for 32-bit
floating-point arithmetic
• Continuous measurement modes
• VMEbus compatible ANSI/IEEE 1014-1987 IEC 821 and 297

VMIVME-2540

VMIVME-2540

VMIVME-2540

VMIVME-2540

The ICC counter circuitry consists of six programmable System Timing Controllers (STCs). Each STC provides the ICC with four high-speed counter/waveform synthesis interfaces, giving the VMIVME-2540 twenty-four

channels of digital measurement and control. The STC counters may be configured individually or in groups of up to four to implement the various measurement and control functions. The on-board 68HC000 CPU

configures and manages each STC interface directly, allowing the VMEbus host interface to be elevated above the hardware level. Ordering options allow the VMIVME-2540 to be factory configured with 1, 2, 4, or 6

System Timing Controllers. The inputs and outputs of the System Timing Controllers are buffered at the front panel connectors with RS-422 line receivers and line drivers. TTL input signal compatibility is supported by

connecting the inverting input of the RS-422 line receiver to an on-board 1.4 V reference through the front panel, and the TTL signal to the noninverting input. The user interface of the Intelligent Counter/Controller

is implemented by a 15 MHz 68HC000 CPU supported by 64 Kbyte of EPROM firmware, 128 Kbyte of zero-wait-state static RAM, and highly-integrated control and interrupt logic. The VMEbus host programs the ICC by

queueing function control blocks in local memory and issuing commands. The CPU responds to the commands by interpreting the function control blocks, configuring the system timing controllers, and then

acknowledging the host command. Once configured, the CPU maintains data structures of measurement data in local memory and interrupts the VMEbus host when a measurement or control process is complete.
