DS200DCFBG1BLC GE Power Supply Board Mark V Series
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Instruction Manual | GEI-100028 |
| Manufacturer | GE General Electric |
| Part Number | DS200DCFBG1BLC |
| Product Type | Power Supply Board |
| Series | Mark V |

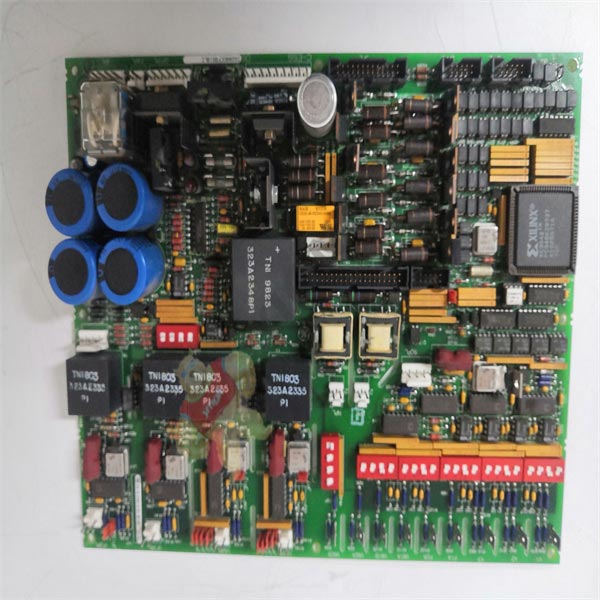

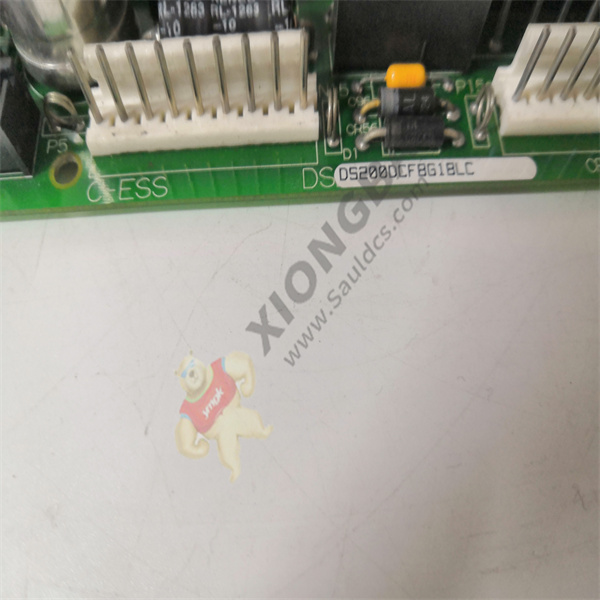

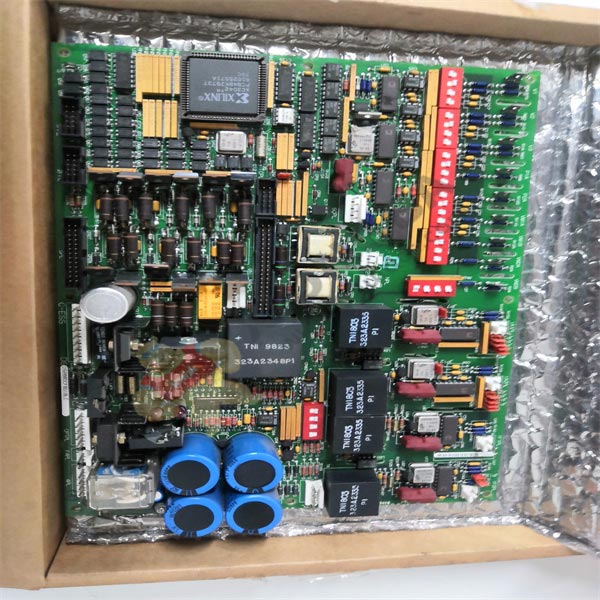

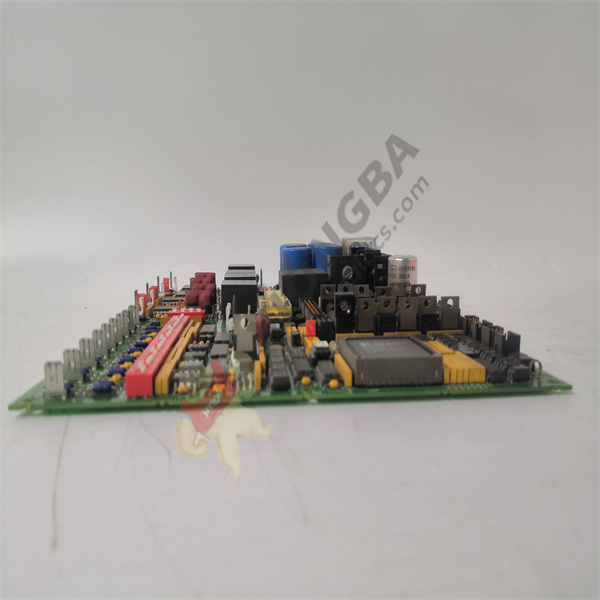

DS200DCFBG1BLC
DS200DCFBG1BLC
DS200DCFBG1BLC
DS200DCFBG1BLC
The DS200DCFBG1BLC is a power supply board designed by General Electric for the Mark V series of optional and replacement boards. Members of this series are cross compatible with a number of GE brand exciters and drives. Drives from the DC2000, AC2000, CB2000, ME2000, and FC2000 can all accept this power board. This card provides system control level power to its installed drive, as well as electricity to the enclosure fan. Sourced AC inputs to this board can rate from 38 to 115 VAC. Frequencies accompanying this VAC can range from 0 to 500 kHz, depending on the strength of the inputted voltage.
DS200DCFBG1BLC contains a number of intricate circuit systems designed to power a majority of the drive. The card includes both an AC and DC monitoring circuit, the control level supply circuit, a motor field power circuit, and a driver circuit. Users can configure the twelve jumpers and seven DIP switches on the card to meet any external requirements. Board status is communicated to the user via the onboard indicators. Two LED and one neon indicators are built into the card, providing users with important diagnostic and status information. Three of the board’s fuses are protected, ensure that interruptions or surges will not disrupt the currents. Be sure to monitor voltage levels periodically using the five test points integrated into the board.
Following provided installation parameters from both DS200DCFBG1BLC and the drive is imperative. These guidelines will ensure that the board and its installed system operates as intended. For a wiring and installation guide, please refer to the series manual as well as the device datasheet. Technical support for all boards in the Mark V series was originally provided by the manufacturer, General Electric.
Our trusted team at AX Control is happy to help with all of your DS200DCFBG1BLC needs. Please contact a member of our team by phone or email to receive prices and availabilities on all parts and repairs.
How much input power does DS200DCFBG1BLC receive from the CPT?
Where can I find descriptions of the connector pins on DS200DCFBG1BLC?
How many jumpers does DS200DCFBG1BLC have?
What is stab P1A on a GE DS200DCFBG1BLC board?
